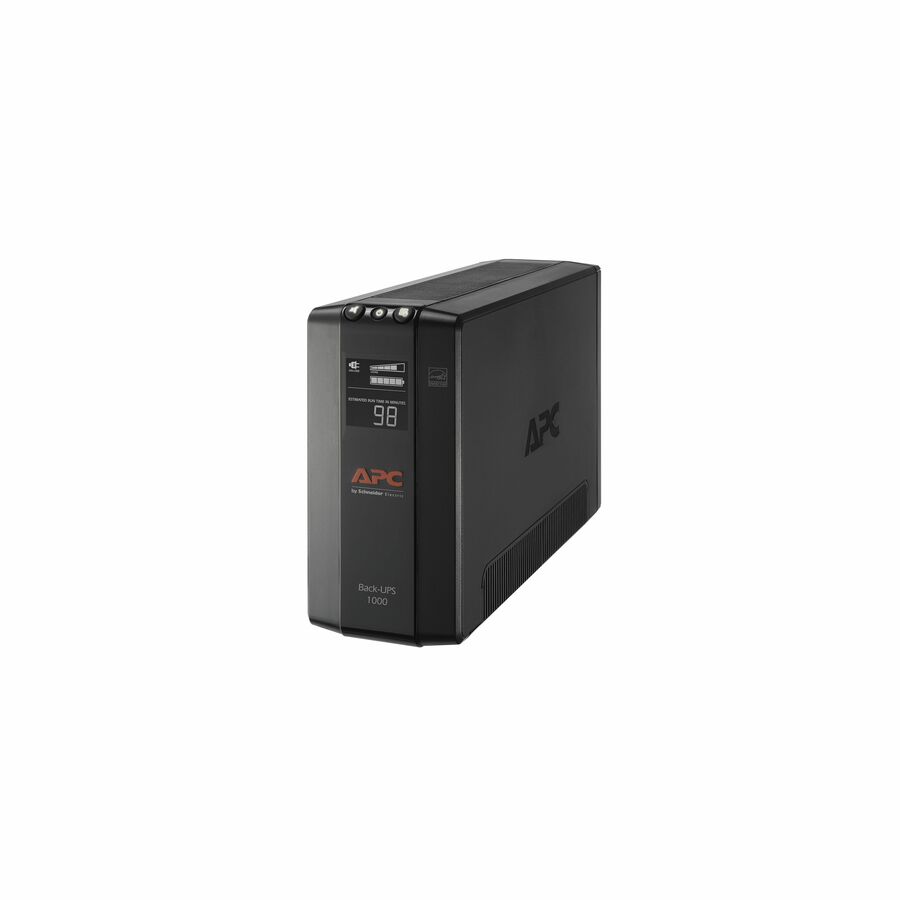

Protect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS Pro Compact 1000VA. APC Back-UPS Pro Compact provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. This compact tower UPS is designed for workstations, monitors and network devices. Automatic Voltage Regulation (AVR) instantly corrects high/low voltage fluctuations so connected devices receive consistent power. The APC compact tower UPS is significantly smaller and lighter than other tower models, allowing for convenient use and installation while still providing quality power protection. With 8 outlets, this desktop UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 600w capacity is ideal for workstations and additional electronics, keeping you connected and productive during power fluctuations. Use the three soft-touch buttons on the front to easily configure settings. Included PowerChute software is available to set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. The LCD Display provides details concerning power-load of connected devices, battery runtime based on connected devices, the power level of the battery and more. 2 RJ-45 data ports are in the back to protect DSL, modem or fax lines from potentially harmful power surges. 2 coaxial ports are also in the back of the UPS for additional protection. This computer backup offers lifetime guaranteed surge protection with a ,250,000 equipment protection policy. Package Contains UPS, USB cable and user manual
- Compatible with PowerChute Serial Shutdown software for remote monitoring and management.
- Restore power backup capacity with user-replaceable battery (APCRBC158 sold separately)
- Audible alarms provide notification of changing utility power and UPS power conditions
- LCD display provides key UPS status at a glance with load and battery bar graphs
- AVR corrects voltage variations to provide reliable power
- Data line protection ensures complete protection of your equipment from surges
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Battery Characteristics | Leak-proof , Maintenance-free , Sealed |
| Number of Battery & Surge Out | 8 |
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| AVR | Yes |
| Dataline Protection | RJ-45 |
| Receptacle Detail | 4 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Number of Surge-only Outlets | 4 |
| Number of Battery & Surge Outlets | 8 |
| Battery Energy | 504 kJ |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 1 |
| Typical Battery Recharge Time | 12 Hour |
| Input Voltage Range | 88 V AC - 139 V AC |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Input Current | 15 A |
| Load Capacity (Watt) | 600 W |
| Load Capacity (VA) | 1000 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 4.30 Minute |
| Backup/Run Time (Half Load) | 13.50 Minute |
| Transfer Time | 10 ms |
| Waveform Type | Stepped Approximated Sine Wave |
| Surge Energy Rating | 1103 J |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| Mounting Preference | No Preference |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Overload |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Thermal Dissipation | 14.21 W |
| Cables | |
|---|---|
| Cord Length | 6 ft |
| Compliance & Certification | |
|---|---|
| Mercury Free | Yes |
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $250000 Lifetime |
| Miscellaneous | |
|---|---|
| Product Name | 120V , LCD , AVR , Compact Tower , Back UPS Pro BX1000M , 1000VA |
