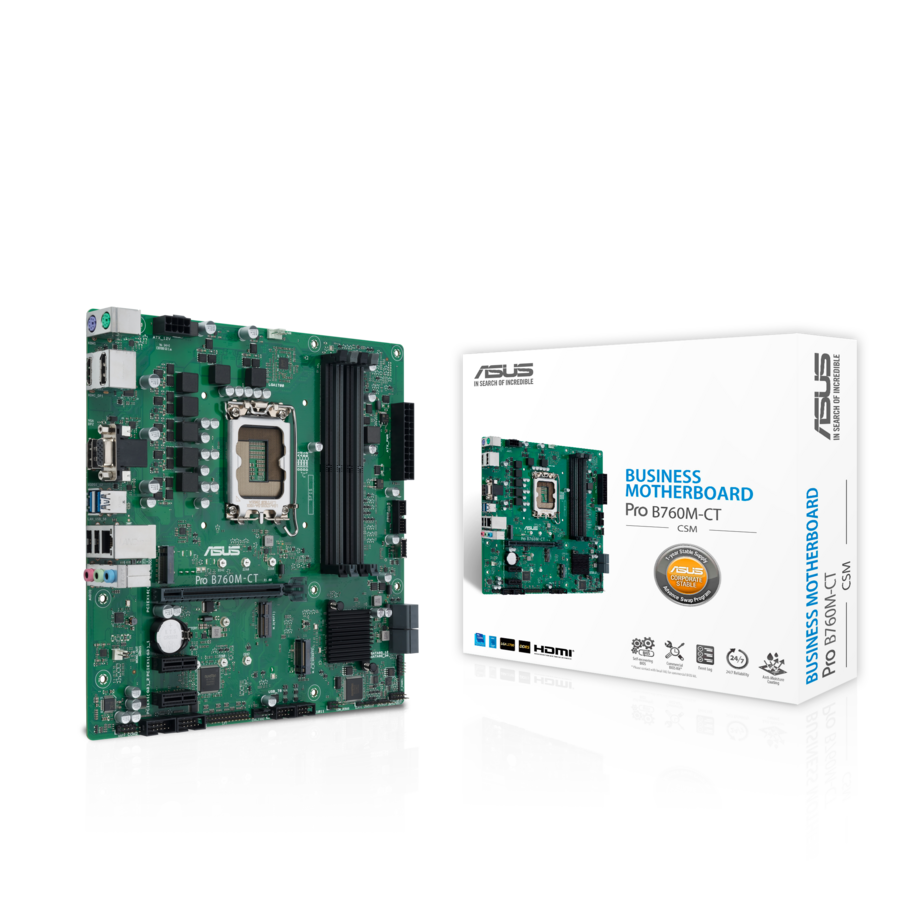

Asus Pro B760M-CT-CSM Industrial Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX

174.99 174.99
174.99

174.99 / Units
  • Brand
  • Processor Supported
  • Depth
  • Number of USB 3.2 Gen 1 Type-
  • Weight (Approximate)
  • Number of PCI Express x16 Slo
  • Total Number of Onboard USB P
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Number of Onboard USB 2.0 Por
  • Total Number of PCI Express S
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Total Processor Supported
  • Chipset Manufacturer
  • Chipset Model
  • RAID Supported
  • Onboard Video
  • Number of M.2 Interfaces
  • Total Number of USB Ports
  • Total Number of Onboard USB Ports
  • Number of USB 2.0 Ports
  • Number of Onboard USB 2.0 Ports
  • Number of USB 3.2 Gen 1 Type-A Ports
  • HDMI
  • HDMI Version
  • DisplayPort
  • Number of Network (RJ-45) Ports
  • Gigabit Ethernet
  • VGA
  • Number of SATA Interfaces
  • Total Number of PCI Express Slots
  • Number of PCI Express x1 Slots
  • Number of PCI Express x16 Slots
  • Total Number of Expansion Slots
  • Form Factor
  • Processor Generation Supported
  • Processor Socket
  • Memory Technology
  • Memory Speed Supported
  • Memory Form Factor
  • Number of Memory Slots
  • Maximum Memory Supported
  • RAID Levels
  • Controller Type
  • Audio Channels
  • Environmentally Friendly
  • Environmental Compliance
  • Packaged Quantity
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Product Model
  • Brand Compatibility
  • Manufacturer Website Address
  • PCI Express Standard
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express

ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express - a US,60

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

DDR5 Support

This business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability, while providing an advanced voltage delivery architecture for greater energy efficiency.

PCIe 4.0

This business motherboard is specially designed for 13th Gen Intel® Core™ processors and offer PCIe® 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it's needed.

ASUS Boot Defender

ASUS Boot Defender on ASUS Business motherboards is designed to automatically protect, detect and recover the boot environment against any intrusions and attacks.

  • Intel® LGA 1700 socket: Ready for 13th Gen Intel Core™ processors
  • ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
  • ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
  • Enhanced system security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
  • Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
  • Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
  • Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
  • Ultrafast connectivity: PCIe 4.0, DDR5, front USB 3.2 Gen 1 Type-C®
Brand
Brand ASUS Computer International
CPU / Processor
Processor Supported Celeron
Total Processor Supported 1
Processor Generation Supported 12th Gen
Processor Socket Socket LGA-1700
GPU / Graphics
Onboard Video CPU Dependent Video
Memory / RAM
Memory Technology DDR5 SDRAM
Memory Speed Supported 4800 MHz
Memory Form Factor UDIMM
Number of Memory Slots 4
Maximum Memory Supported 128 GB
Storage
RAID Supported Yes
RAID Levels 10
USB Ports
Number of USB 3.2 Gen 1 Type- 2
Total Number of Onboard USB P 7
Number of Onboard USB 2.0 Por 4
Total Number of USB Ports 4
Total Number of Onboard USB Ports 7
Number of USB 2.0 Ports 2
Number of Onboard USB 2.0 Ports 4
Number of USB 3.2 Gen 1 Type-A Ports 2
HDMI Ports
HDMI Yes
DisplayPort
DisplayPort Yes
Ethernet Port
Number of Network (RJ-45) Por 1
Number of Network (RJ-45) Ports 1
Gigabit Ethernet Yes
Audio
Audio Channels 7.1
Size / Dimensions
Form Factor Micro ATX
General Features
Chipset Manufacturer Intel
Chipset Model B760
Controller Type Serial ATA/600
Manufacturer ASUS Computer International
Brand Compatibility Intel
Expansion Slots
Number of PCI Express x16 Slo 1
Total Number of PCI Express S 3
Total Number of PCI Express Slots 3
Number of PCI Express x1 Slots 2
Number of PCI Express x16 Slots 1
Total Number of Expansion Slots 3
PCI Express Standard PCI Express 4.0
Video Ports
VGA Yes
Misc Ports
Number of M.2 Interfaces 2
Number of SATA Interfaces 4
Compliance & Certification
Environmentally Friendly Yes
Miscellaneous
Product Name Pro B760M-CT-CSM Industrial Motherboard
Asus Pro B760M-CT-CSM Industrial Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
