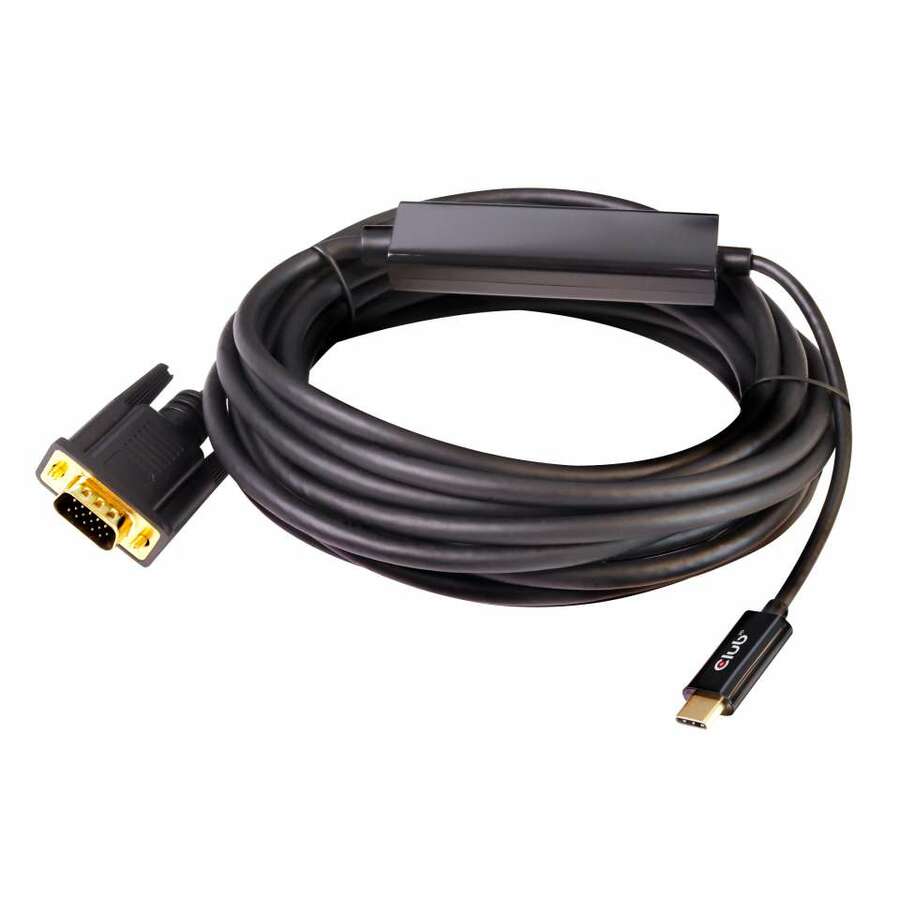

CAC-1512 - The Club 3D CAC-1512 enables the connection of your USB C Supported Computer to a VGA Supported monitor or projector. This is an all in One Solution Cable and Adapter with the reversible USB C connector. Its necessary for the computer to support DisplayPort Alt mode from the USB C connector.
It allows Widescreen Ultra Extended Graphics Array (WUXGA) at a 16x10 aspect ration with a display resolution of 1920x1200 pixels which makes it a great solution for home, office or other work environments.
This USB C to VGA cable works with USB C Devices such as Macbook, Macbook Pro, Chromebook, Dell XPS, Asus Tablet, and Razer.
- Supports RGB formats
- Triple 8 Bit Digital to Analog Converter (DAC)
- Supports 6, 8 Bits per color
- Supports 3.3V VSYNC and HSYNC outputs
- Pixel Clock up to 240Mhz
- Supports Analog RGB Current source outputs
- This cable is USB powered and consumes approximately 200mW of power for video streaming in WUXGA
- Supports MainLink 1Lane HBR (High Bit Rate)at 2.7Gbit/s per lane and 2 lanes at RBR (Reduced Bit Rate) 1.62Gbit/s per lane
- Supports DP1.1 Specifications
| Brand | |
|---|---|
| Brand | Club 3D |
| Screen / Display | |
|---|---|
| Supported Resolution | 1920 x 1200 |
| General Features | |
|---|---|
| Data Transfer Rate | 2.7 Gbit/s |
| Manufacturer | Club 3D |
| Cables | |
|---|---|
| Cable Length | 16.40 ft |
| Cable Type | USB/VGA |
| Connector Type on First End | USB Type C - Male |
| Connector on First End Details | 1 x USB Type C - Male |
| Connector Type on Second End | DB-15 - Male |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
