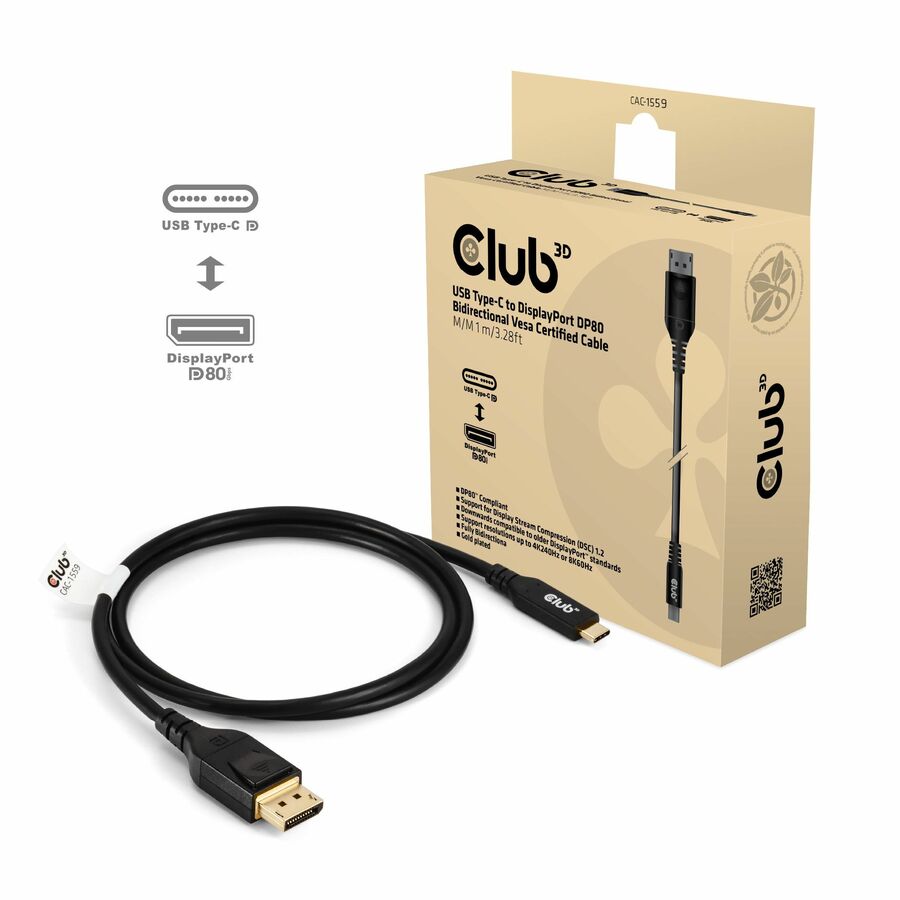

The Club 3D CAC-1559 USB Type-C to DisplayPort™ 2.1 Bi-Directional DP80™ Coaxial Cable, 4K240Hz, 8K60Hz or 10K60Hz M/M 1 m/3.28ft enables the connection of your USB Type-C supported (Gaming) PC or Laptop to an (Ultra) High Resolution Monitor or other DisplayPort™ supported device. DisplayPort™ 2.1 UHBR10/13.5/20 up till 80 Gbps, also has support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32. It features locking DisplayPort™ connector providing a secure, dependable connection, with NEW contact fingers special designed for these high speeds. Simply press the built-in one-touch latch button to unlock the connector. The soft UltraFlex jacket protects the cable from bends and deformation damage.
- Fully DisplayPort™ Version 2.1 Compliant, UHBR10/13.5/20 up till 80 Gbps
- DP80™ Compliant
- Support for Display Stream Compression (DSC) 1.2
- Support for Forward Error Correction
- Support for up to 32 Inline Audio Channels
- New DP2.1 spec connector
- USB must support new standard DisplayPort 2.1 (DP80) Alternate Mode
- Downwards compatible to older DisplayPort™ standards
- Support resolutions up to 4K240Hz or 8K60Hz or 10K60Hz
- Fully Bidirectional
- VESA Certified
| Brand | |
|---|---|
| Brand | Club 3D |
| Screen / Display | |
|---|---|
| Supported Resolution | 10240 x 4320 |
| General Features | |
|---|---|
| Data Transfer Rate | 80 Gbit/s |
| Manufacturer | Club 3D |
| Cables | |
|---|---|
| Cable Length | 3.28 ft |
| Cable Type | DisplayPort/USB-C |
| Connector Type on First End | USB Type C - Male |
| Connector on First End Details | 1 X USB Type C Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | DisplayPort 2.1 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector Plating | Gold |
