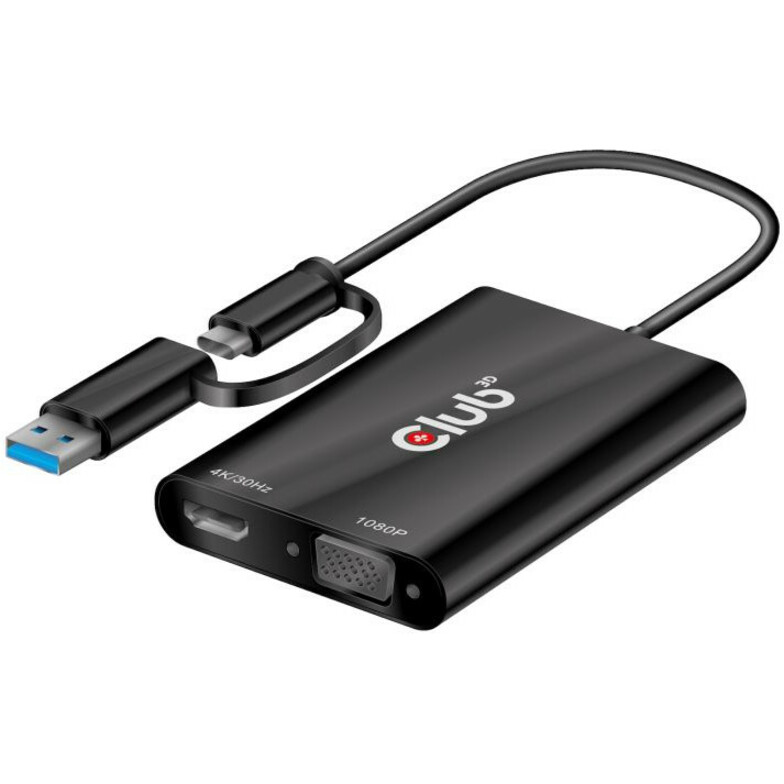

The Club 3D CSV-1611 USB Gen1 Type-C/-A to Dual HDMI™ (4K/30Hz) and VGA (1080/60Hz) adapter is a Dual Display adapter which provides most advanced, efficient solution to extend a single USB Type-C or Type-A port to HDMI™ and VGA displays. It supports single HDMI™ 4K/30Hz and VGA 1080P/60Hz or dual 4K/30Hz + VGA 1080P/60Hz simultaneous output of different videos. It can work on USB Mode and DP Alt mode supported Type-C and USB-A host. Dual Video output on MacBook with M1. Support USB Gen1 with max 5Gbps data transmission. The unit is powered thru the USB Type-A or Type-C host connection. No external power needed.
- Works with both USB Gen1 Type-A or Type-C input
- No external power needed
- Support USB mode
- Support USB Gen1 with max 5Gbps data transmission
- Dual output on MacBook with M1
- Support HDMI™ max 3840x2160@30Hz output
- Support output pixel format RGB/YCbCr4:2:2/YCbCr4:2:0
- Support VGA max 1920x1080@60Hz output
- Support output dual 3840x2160@30Hz + 1080P@60Hz simultaneously under MST mode
- Support 8bit color depth output
| Brand | |
|---|---|
| Brand | Club 3D |
| Screen / Display | |
|---|---|
| Maximum Resolution Supported | 3840 x 2160 |
| General Features | |
|---|---|
| Manufacturer | Club 3D |
| Cables | |
|---|---|
| Power Cable Length | 8.66" |
| Cable Length | 8.66" |
| Connector Type on First End | USB Type A - Male |
| Connector on First End Details | 1x USB Type A- Male |
| Connector Type on Second End | VGA |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Adapter Type | HDMI/USB/USB-C/VGA |
