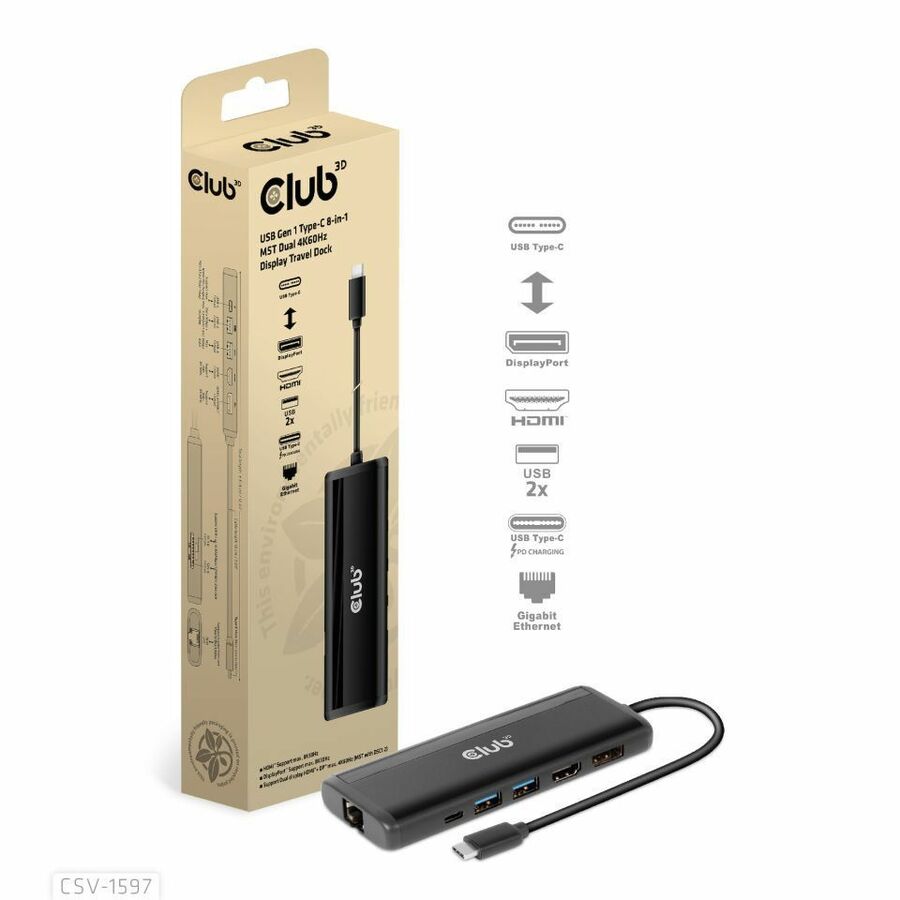

The Club 3D CSV-1597 USB Gen 1 Type-C 8-in-1 MST Dual 4k60Hz Display Travel Dock with HDMI™8K30Hz(HDR), DisplayPort™ 8K30Hz, 2x USB Gen1 Type-A, BC1.2, RJ45, SD/Micro SD card slots and USB Gen1 Type-C PD3.0 Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD3.0 charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.4 Alt mode supported USB Gen1 Type-C hosts.
- Support DP™1.4 Alt mode max. 8K@30Hz(with DSC1.2)
- Support HDMI™ max. 8K@30Hz(with DSC1.2)
- Support Dual display HDMI™+ DP™ max.4K60Hz (MST with DSC1.2)
- Max 5Gbps data transmission per USB Gen 1 Type-A port
- Support max 7.5W(5V/1.5A) downstream charging, 2 USB Gen1 Type-A share max 2.5A(12.5Watt) output
- Support Gigabit Ethernet 10M/100M/1000M
- Support SD3.0 UHS-I up to 832Mbps/104MB/s data rate, allow 2 card slots to work simultaneously
- Support PD3.0 with max. 100W PD charging
| Brand | |
|---|---|
| Brand | Club 3D |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 2 |
| Screen / Display | |
|---|---|
| Screen Mode Supported | 8K @ 30Hz |
| Supported Resolutions | 7680 x 4320 |
| Power & Battery | |
|---|---|
| Charging Capability | Yes |
| Power Source Type | USB |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB Power Delivery | 100W |
| Total Number of USB Ports | 4 |
| USB Type-C | Yes |
| Number of USB Type-C Ports | 2 |
| USB Type-A | Yes |
| Number of USB Type-A Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Card Reader | |
|---|---|
| Memory Card Reader | Yes |
| Memory Card Supported | microSD |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 640 MB/s |
| Manufacturer | Club 3D |
| Misc Ports | |
|---|---|
| Host Interface | USB (Gen 1) Type C |
| Cables | |
|---|---|
| Cable Length | 7.09" |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
