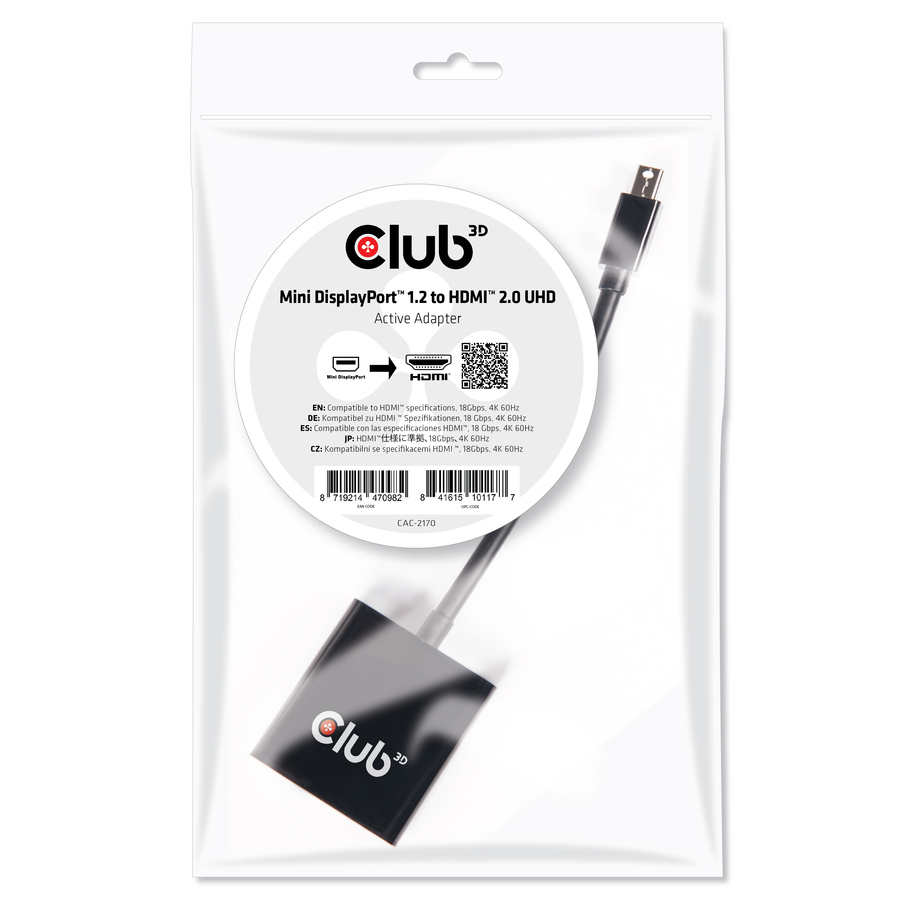

CAC-2170 - The Club 3Dis an active HDMI™ 2.0 signal converter. The Mini DisplayPort™ 1.2 to HDMI™ 2.0 UHD Active Adapter is the easiest solution for connecting your Mini DisplayPort™ 1.2 Game PC or Laptop to an HDMI™ enabled 4K UHD Television, monitor or Projector. The adapter is compliant to HDMI™2.0 specification allowing for 6Gbps TMD Sthroughput per channel. The interface in the adapter has three lanes for HDMI™ data, clock, HPD signal and power, offering a total TMDS throughput of 18Gbps.
Supports up to 4K UHD Resolution at 60Hz.
The Mini DisplayPort™ 1.2 to HDMI™ 2.0 UHD Active Adapter supports UHD resolutions of up to 4K UHD 4096x 2160p @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video or gameplay. Use the adapter to play games, view video or browse the internet from your MiniDisplayPort™ 1.2 enabled device in Ultra High Resolution. Supporting up to 8 channels of audio, the adapter provides Ultra High Definition digital audio and video. It is the ideal solution for anyone who wants to enjoy 4K UHD/ 60 gameplay but lacks a native HDMI™ 2.0 output in their system configuration.
- Supports AMD GCN cards, Nvidia® Maxwell cards and Intel® HD 5XXX series and newer. Not intended for older architectures.
- Supports UHD resolutions up to 4096 x 2160p @ 60Hz and 1080p 3D
- Internal YCbCr 4:4:4 /4:2:2 to YCbCr 4:2:0 conversion capability
- Supports 24-bit color and 4:4:4 color sampling
- Repeater for HDCP 1.3 and HDCP 2.2
- Supports full link training and no link training
- Compliant to HDMI™ 2.0 Specification, data rate up to 6Gbps per channel total throughput 18Gbps
- Compliant to DisplayPort™ Specification 1.2 for 1.62Gbps,2.7Gbps and 5.4Gbps per lane. Effective (video) bandwidth 17.28Gbps
| Brand | |
|---|---|
| Brand | Club 3D |
| Screen / Display | |
|---|---|
| Supported Resolution | 4096 x 2160 |
| General Features | |
|---|---|
| Data Transfer Rate | 18 Gbit/s |
| Manufacturer | Club 3D |
| Cables | |
|---|---|
| Cable Length | 5.91" |
| Cable Type | HDMI/Mini DisplayPort |
| Connector Type on First End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on First End Details | 1 x Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video - Female |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | Club 3D |
| UPC/GTIN | 841615101177 |
| MPN | CAC-2170 |
| Unit Count | 1 Units |
