Club 3D Docking Station

$ 134.99 $ 134.99
$ 134.99

$ 134.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Headphone/Microphone Combo Po
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Connectivity Technology
  • USB Type-C
  • Number of USB Type-C Ports
  • USB Type-C Detail
  • USB Type-A
  • Number of USB Type-A Ports
  • HDMI
  • Number of HDMI Ports
  • Network (RJ-45)
  • Number of RJ-45 Ports
  • Host Interface
  • Product Color
  • Screen Mode Supported
  • Ethernet Technology
  • Number of Displays Supported
  • Environmentally Friendly
  • Environmental Compliance
  • Recycled
  • Packaged Quantity
  • Package Contents
  • Assembly Required
  • Manufacturer
  • Product Type
  • Brand Compatibility
  • Manufacturer Website Address
  • Maximum Power Supply Wattage
  • Supported Resolutions
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

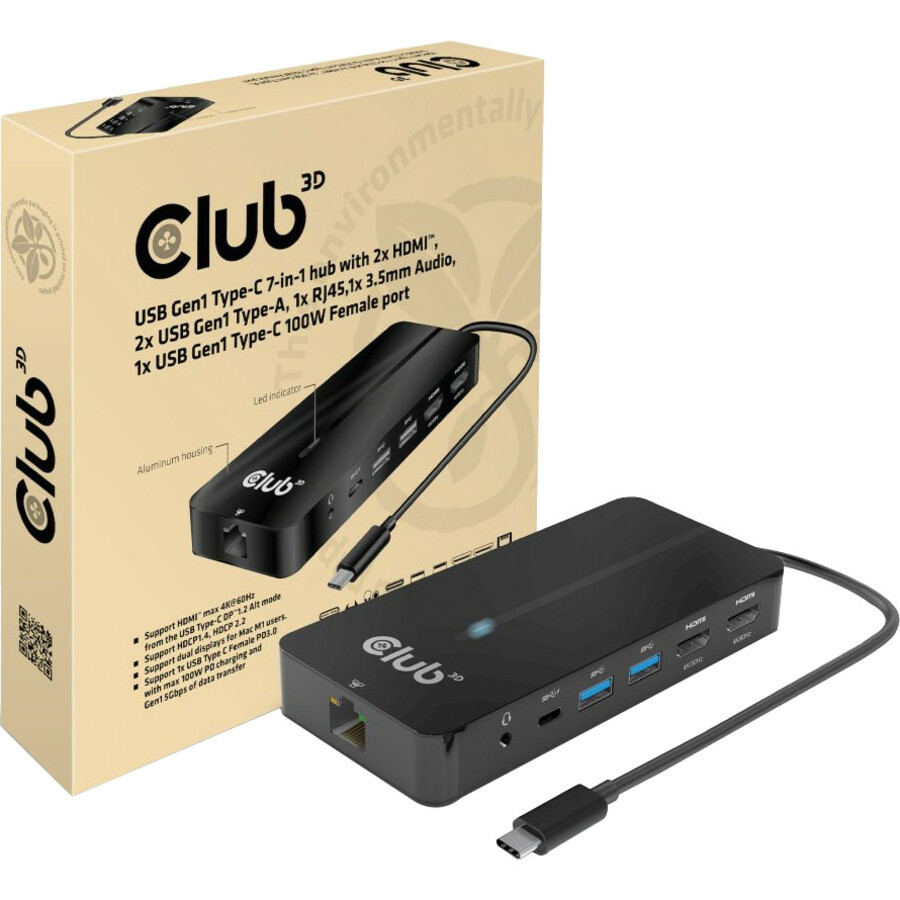

The Club 3D CSV-1595 USB Gen1 Type-C 7-in-1 hub with with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.4 Alt mode supported USB Gen1 Type-C hosts

  • Support DP™1.4 Alt mode
  • Support HDMI™ max 4K@60Hz from the USB Type-C Display Alternate Mode function
  • Support HDMI™ max 4K@30Hz from the integrated chipset in the dock
  • Support HDCP1.4, HDCP 2.2 ( on the HDMI with AltMode Function only)
  • Support dual displays for Mac M1 users.
  • Max 5Gbps data transmission per USB Gen1 Type-A port
  • Support max 7.5W(5V/1.5A) downstream charging,
  • 2 USB Gen1 Type-A BC 1.2
  • Support Gigabit Ethernet 10M/100M/1000M, RJ45
  • Support Audio output
Brand
Brand Club 3D
GPU / Graphics
Number of Displays Supported 2
Screen / Display
Screen Mode Supported 4K
Supported Resolutions 3840 x 2160
Power & Battery
Maximum Power Supply Wattage 100 W
Networking & Connectivity
Connectivity Technology Wired
USB Ports
USB Type-C Yes
Number of USB Type-C Ports 1
USB Type-A Yes
Number of USB Type-A Ports 2
HDMI Ports
HDMI Yes
Number of HDMI Ports 2
Ethernet Port
Network (RJ-45) Yes
Number of RJ-45 Ports 1
Audio Ports
Headphone/Microphone Combo Po Yes
General Features
Manufacturer Club 3D
Brand Compatibility Apple
Misc Ports
Host Interface USB Type C
Compliance & Certification
Environmentally Friendly Yes
Recycled No
Miscellaneous
Assembly Required No
