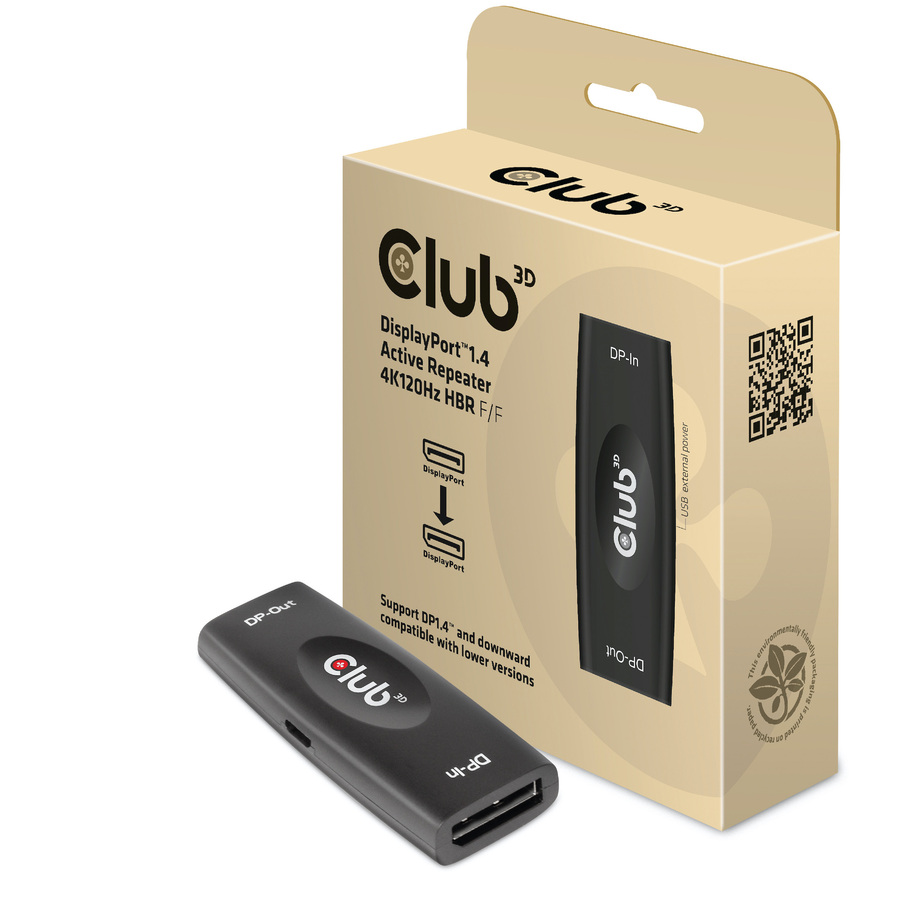

The Club 3D CAC-1007 is a DisplayPort™ 1.4 active repeater, which provides a convenient method for users to extend DP™ signal from host PC to monitor or projector up to 20 meters/65.6 ft (10 meters/32.8 ft in and 10 meters/32.8 ft out) at max 4K120Hz resolution, for 28AWG or above cable.
The Adapter is powered thru an Micro USB to USB Type A cable(provided with the product).
- Support cascading function up to 3 levels
- Extending Distance: max 20m/65.6ft (10m/32.8ft input, 10m/32.8ft output) for 28AWG or above cable,
- Support DisplayPort™ 1.4 HBR3 with max video resolution 4K@120Hz.
- Transmission speed 1.62 Gbps / 2.7 Gbps / 5.4Gbps / 8.1 Gbps
- Support DP1.4™ and downward compatible with lower versions
| Brand | |
|---|---|
| Brand | Club 3D |
| USB Ports | |
|---|---|
| USB | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Number of DisplayPort Inputs | 1 |
| General Features | |
|---|---|
| Maximum Operating Distance | 65.62 ft |
| Manufacturer | Club 3D |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
