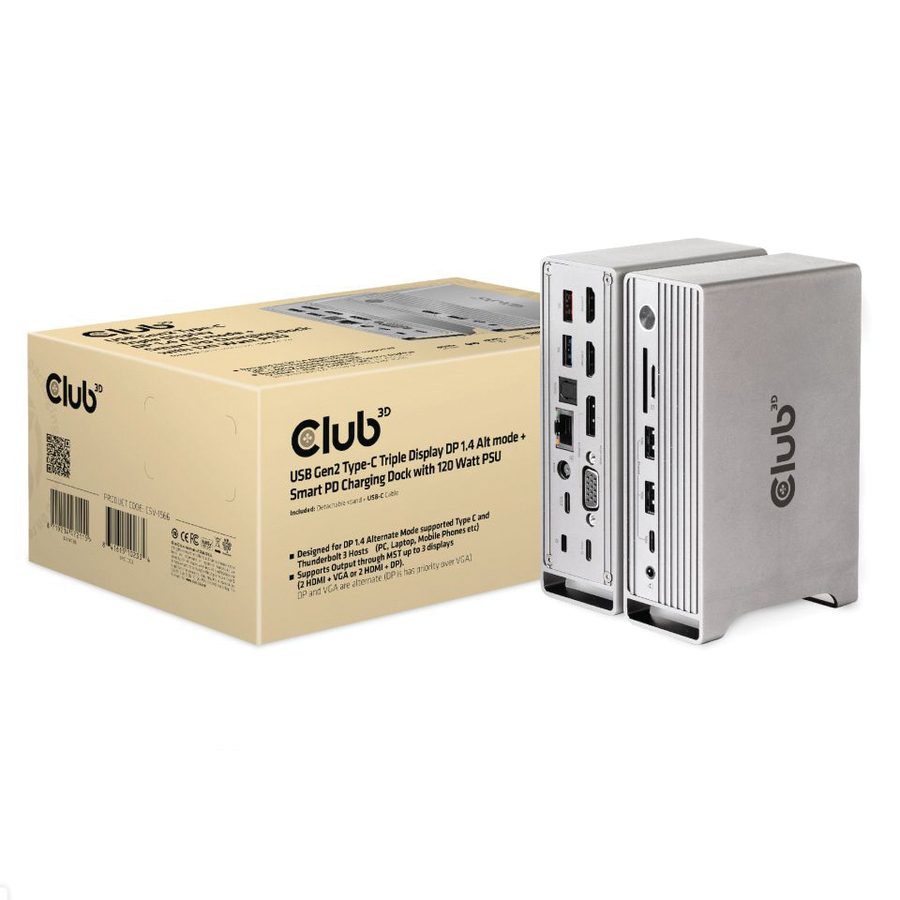

Club 3D CSV-1568 Docking Station

$ 229.99 $ 229.99
$ 229.99

$ 229.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Headphone/Microphone Combo Po
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Connectivity Technology
  • USB Type-C
  • Number of USB Type-C Ports
  • USB Type-A
  • Number of USB Type-A Ports
  • Kensington Security Slot
  • HDMI
  • Number of HDMI Ports
  • DisplayPort
  • Number of DisplayPorts
  • DisplayPort Version
  • Network (RJ-45)
  • Number of RJ-45 Ports
  • VGA
  • Host Interface
  • Ethernet Technology
  • Number of Displays Supported
  • Operating System Supported
  • Environmentally Friendly
  • Environmental Compliance
  • Package Contents
  • Manufacturer
  • Product Type
  • Product Model
  • Brand Compatibility
  • Device Supported
  • Manufacturer Website Address
  • Maximum Power Supply Wattage
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G)for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply). It supports all DP Alt mode1.4/1.2 supported Type-C and ThunderboltT™ 3 host (PC, Laptop, Mobile phone, etc.) under Windows and under MacOSX based on Intel you will only get limited SST Function or Single display Only.

Features:

  • Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc)
  • Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP is has priority over VGA)
  • When 3 Displays are connected - 16.2Gbps bandwidth will be shared
  • Single Display Support - HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz
  • DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
  • DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
  • DP and HDMI support deep color 8/10 bit
  • DP and HDMI support HDR
  • DP and HDMI support HDCP2.2&1.4
  • DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display
  • Support Gigabit Ethernet 10/100/1000M
  • Support USB3.2 Gen2 with max 10Gbps data transfer
  • Support smart charging
  • Support Digital audio with max 96KHz/24bit sampling rate
  • Support dual power supplies: Type-C PD charging or DC Jack
  • Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices
  • Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W
  • Wired connectivity technology provides a high-powered and dependable connection
  • USB Type C host interface allows powerful and efficient transfer of data with maximum productivity
  • Monitor device supported for your convenience and better usability
  • Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
  • HDMI effectively and conveniently transmits both audio and video signals with one single cable to ensure hassle-free connectivity
Brand
Brand Club 3D
GPU / Graphics
Number of Displays Supported 3
Power & Battery
Maximum Power Supply Wattage 120 W
Networking & Connectivity
Connectivity Technology Wired
USB Ports
USB Type-C Yes
Number of USB Type-C Ports 2
USB Type-A Yes
Number of USB Type-A Ports 4
HDMI Ports
HDMI Yes
Number of HDMI Ports 2
DisplayPort
DisplayPort Yes
Number of DisplayPorts 1
DisplayPort Version 1.4
Ethernet Port
Network (RJ-45) Yes
Number of RJ-45 Ports 1
Audio Ports
Headphone/Microphone Combo Po Yes
Security
Kensington Security Slot Yes
General Features
Manufacturer Club 3D
Brand Compatibility Intel
Video Ports
VGA Yes
Misc Ports
Host Interface USB Type C
Compliance & Certification
Environmentally Friendly Yes
