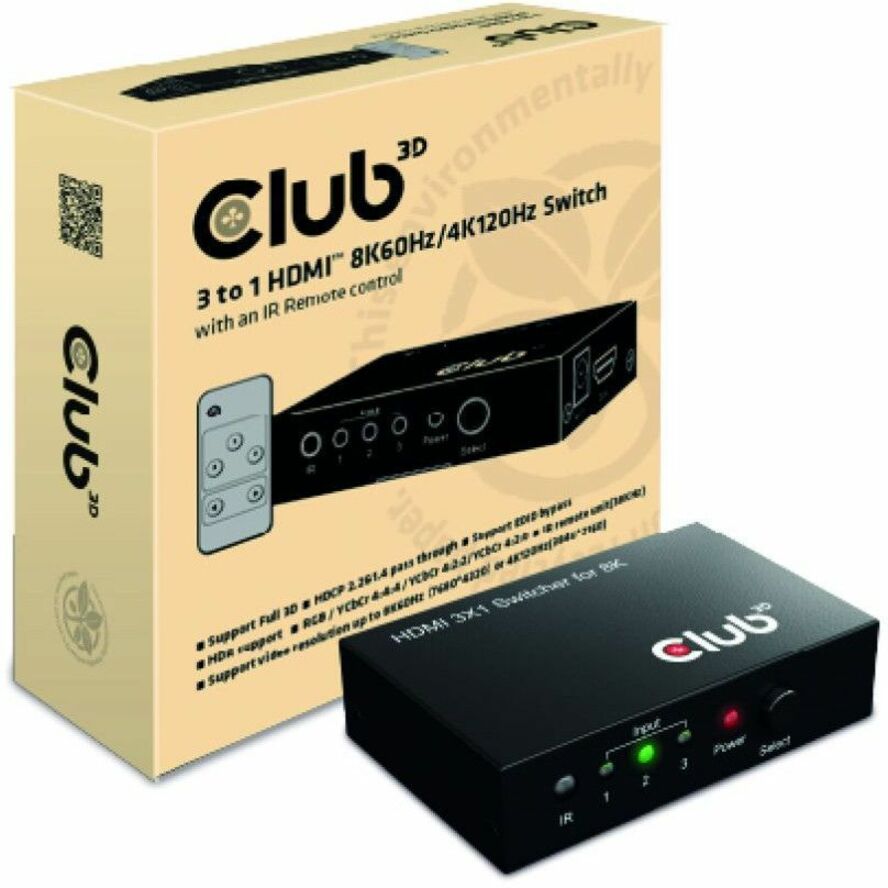

The Club 3D CSV-1381 is a 3 to 1 HDMI™ spec. Switch that routes your high-definition video and digital audio from any one of the HDMI™ inputs to an 8K60Hz/4K120Hz HDMI™ output. The easiest way of connecting your High-Resolution game consoles and/or your PC/Laptop to 1 High-Resolution HDMI™ display up to 8K60Hz or 4K120Hz. All inputs are capable to accommodate up to 8K60Hz/4K120Hz high-definition video sources simultaneously. The output sends the high-definition audio/video signals to a high definition(8K60Hz) HDMI™ spec. Display. Switching inputs can be done by key pressing, on the unit itself, or with an IR remote unit for easy switching. This is a high-performance and small-sized HDMI™ 8K Switcher in a metal housing with an external Power Supply of 100-240VAC / 5V-1A DC. It's an ideal assistant both at home and at work.
- Support video resolution up to 8K60Hz(7680*4320) or 4K120Hz(3840*2160)
- Support Full 3D
- HDCP 2.2&1.4 pass through
- Support EDID bypass
- HDR support
- RGB / YCbCr 4:4:4 /YCbCr 4:2:2/YCbCr 4:2:0
- IR remote unit(38KHz)
- Each Input- and Output- cable length is max. 2m/6.56ft
| Brand | |
|---|---|
| Brand | Club 3D |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 3 |
| Screen / Display | |
|---|---|
| Refresh Rate | 60 Hz |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Cable |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 3 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 7680 x 4320 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 3 |
| General Features | |
|---|---|
| Manufacturer | Club 3D |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | Club 3D |
| UPC/GTIN | 841615102952 |
| MPN | CSV-1381 |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
