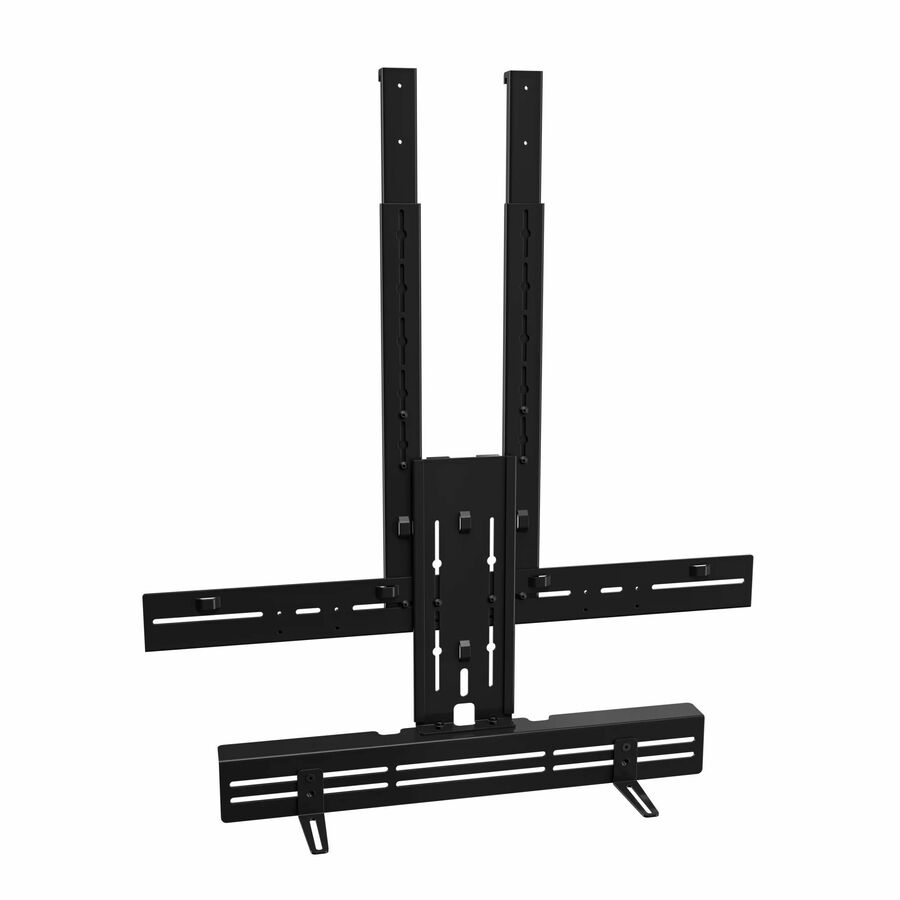

Complete your AV system installations with this Installer Inspired video-sound bar mount for use with Tempo™ Flat Panel In-Wall Mount System.
- Video-sound bar interface bracket is 22.25" (565 mm) wide by 2.88" (73 mm) tall to avoid peek-a-boo with most video-sound bars. The ample 21.41" (544 mm) wide slot allows you to secure most video-sound bars having rear mounting holes.
- Quick and easy installation. The video-sound bar mount glides and locks into place on the top and bottom rail of the Tempo Flat Panel In-Wall Mount System.
- Horizontal lateral shift allows you to position the video-sound bar mount as needed to center with the display.
- Height adjustment allows 15.56" (395 mm) of travel to easily position the video-sound bar mount at the right height above or below the display.
- Window opening and slots along both sides of the vertical bracket facilitate cable management.
- Weight capacity of 20 lbs (9 kg) with video-sound bars mounted to interface bracket. When using "L" brackets to mount a video-sound bar the weight capacity is 15 lbs (6.8 kg).
- Fits most video-sound bars having mounting holes in the back or bottom.
- IMPORTANT! Installation pre-requisite: Tempo Flat Panel In-Wall Mount System FPIWMS mounting rails must be installed at a minimum 1" depth prior to installation of either FPIWMA100 and FPIWMA101 accessories.
