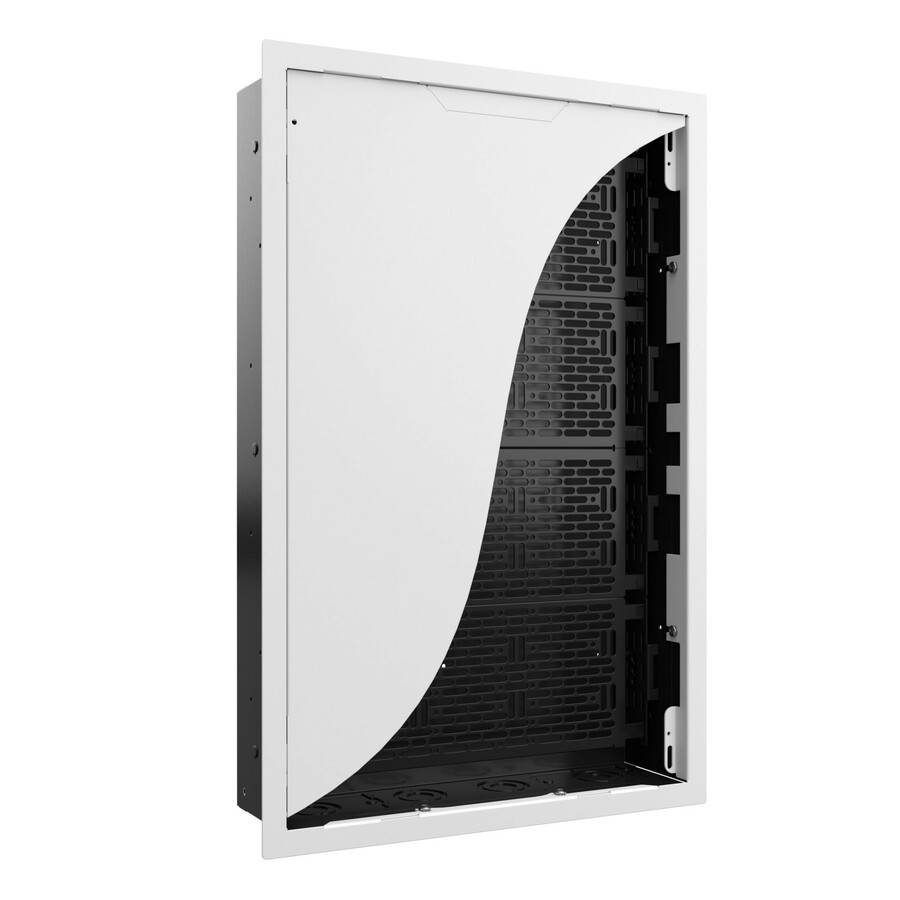

The new PAC527LFC now includes two large tool-free Lever Lock™ plates for quick installation of AV equipment and efficient servicing of the system. Lever Lock™ plates can be mounted on four different levels to easily organize and layer components within the in-wall box. The PAC527LFC also includes a paintable white flange and cover to blend into any space aesthetics.
Lever Lock™ plates are compatible with Middle Atlantic Products' Forward Cable Management Solutions.
Optionally also include one of the following power protection options:
- Two outlet Power Filter Kit PACPC1
- Four outlet Power Filter and Surge Protection Kit PAC527P4-KIT
- Six outlet Power Filter and Surge Protection Kit PAC527P6-KIT
- Two outlet IP controlled Select Series Compact PDU with RackLink™ from Middle Atlantic Products
- Multiple depth break away edge allows compatibility with standard 3.5" stud and 2.5" stud bays (89 or 64 mm)
- Provides a larger, easy-to-organize space to accommodate AV equipment - 22" (559 mm) tall
- Pre- and post-construction installation options
- Knockouts for single gang outlets and 1 �", 1" , and �" conduit
- Unmatched small device mounting flexibility built-in, with patented Lever Lock™ plates
- Patented universal hole pattern simplifies mounting of small devices
- Includes PACL2 Lever Lock™ plates mountable at four different depths in four different locations
- Paintable white flange and cover to blend in any environment
- Allows for AV devices to be mounted in advance before terminating cables on site
- PACL2 plate can be snapped in half to create two smaller sections
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 40 lb |
| Appearance | |
|---|---|
| Finishing | Zinc Plated |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
