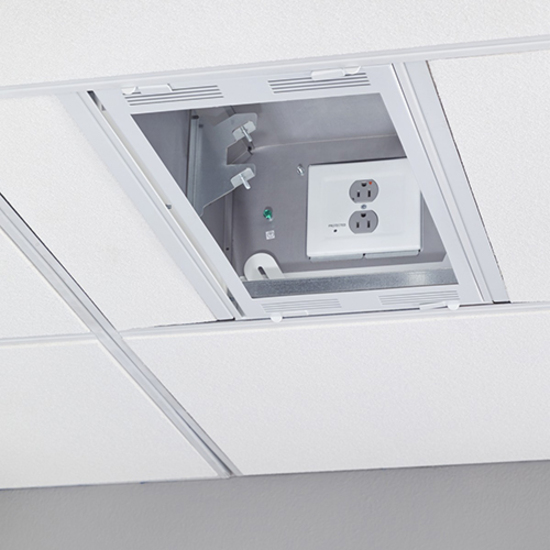

The CMS491P2 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.
Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring the SurgeX® non-sacrificial multi-stage filtration and surge protection system. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.
Chief's powered solutions were co-developed with SurgeX, a brand of AMETEK® Electronic Systems Protection.
- TAA Compliant
- Plenum rated, UL approved in accordance to 2043
- 25 lbs (11 kg) per shelf location
- Ships with speed connect installation hardware
- Lightweight construction, one man installation
- 50 lbs (22 kg) for projector ceiling plate
- Ships with 1 shelf, 2nd shelf sold separately see CMSUNV1
- Overall weight capacity 100 lbs (45 kg)
- Built in ventilation
- AV tray supports a variety of AV components
- 4 nested knockouts for 1-1/4", 1", & �" diameter conduit
- Inside the plenum box or facing the room
- Up to 2 single gang or 1 dual gang outlet
- Detachable power housing can be pre-installed with electricians on site and assembled to the storage boxat a later time
- Drop carriage door improves accessibility and serviceability providing full access to equipment
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 99.21 lb |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
