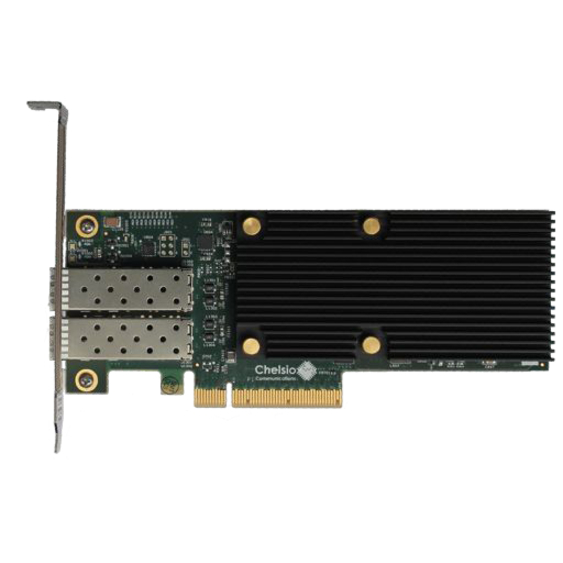

Chelsio's T520-CR is a dual port 10 Gigabit Ethernet Unified Wire adapter with PCI Express 3 host bus interface, optimized for cloud computing, HPC, virtualization, storage, and other data center applications.
The fifth-generation (T5) technology from Chelsio provides the highest 10GbE performance available and dramatically lowers host-system CPU communications overhead with on-board hardware that off-loads TCP/IP, iSCSI, FCoE and iWARP RDMA processing from its host system. T520-CR frees up host CPU cycles for useful applications. The system achieves increased bandwidth, lower latency, and uses less power.
- Software Compatible with T4
- HW based firewall in the cloud
- Traffic filtering & management
- Integrated media streaming offload
- EVB, Flex10, VNTag
- PCI-SIG-SR-IOV
- Full NAT offload
- Full iWARP RDMA offload
- Full TCP and UDP offload
- Full iSCSI, FCoE offload
- Low Latency
- Supports Up to 1M Connections
- PCI Express Gen3 x8
| Brand | |
|---|---|
| Brand | Chelsio Communications |
| Networking & Connectivity | |
|---|---|
| XJACK | No |
| Network Technology | 10GBase-LR |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Ethernet AUI | No |
| Network (RJ-45) | No |
| PoE (RJ-45) Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Manufacturer | Chelsio Communications |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express x8 |
| Serial Port | No |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
