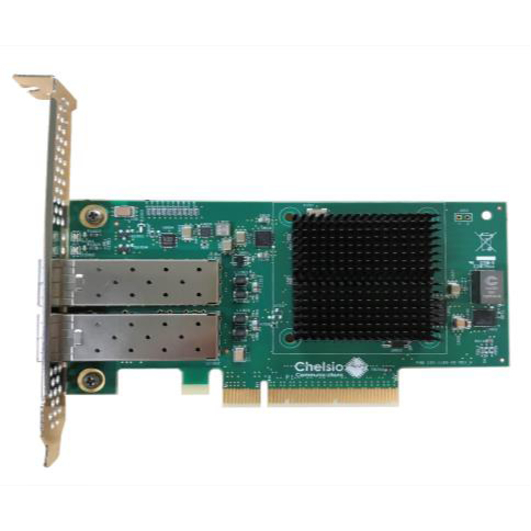

Chelsio's T520-SO-CR is a memory free dual-port 10 Gigabit Ethernet Unified Wire adapter with a PCI Express 3.0 host bus interface, optimized for cloud computing, virtualization, storage, and other datacenter applications.
This adapter, based on the fifthgeneration (T5) technology from Chelsio provides the highest 10GbE performance available and dramatically lowers hostsystem CPU communications overhead with on-board hardware that offloads TCP/IP processing from its host system. T520-SO-CR frees up host CPU cycles for useful applications. The system achieves increased bandwidth, lower latency and uses less power.
- Software Compatible with T4
- HW based firewall in the cloud
- Traffic filtering & management
- PCI-SIG SR-IOV
- Integrated media streaming offload
- Full TCP offload
- EVB, Flex10, VNTag
- Low latency
- Memory free & up to 32 connections for offload functionalities
- PCI Express Gen3 x8
| Brand | |
|---|---|
| Brand | Chelsio Communications |
| Networking & Connectivity | |
|---|---|
| XJACK | No |
| Network Technology | 10GBase-LR |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Ethernet AUI | No |
| Network (RJ-45) | No |
| PoE (RJ-45) Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| General Features | |
|---|---|
| Manufacturer | Chelsio Communications |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slo | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express x8 |
| Serial Port | No |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | T5 Dual Port 10GbE Adapter |
