C2G Superbooster USB Extenders deliver reliable USB signal transmission for USB devices, allowing devices such as cameras, interactive whiteboards and printers to be placed at greater distances from the host computer.
What's more, the C2G Superbooster USB Camera Extender has been tested to be compatible with industry-leading video conferencing cameras. Not only does this testing ensure reliability and deployment confidence for AV integrators, it saves valuable time as well.
This camera extender is designed with chipset technology that offers a higher compatibility rate than other USB extenders on the market. The C2G Superbooster USB Camera Extender has been tested and proven by C2G to support leading PTZ cameras.
This Superbooster® USB Camera Extender provides reliable USB data extension from a computer to a USB camera up to 150 feet (45.7m) over a standard Cat6 network cable - making it an ideal solution for conference rooms, command centers, classrooms, auditoriums and medical facilities.

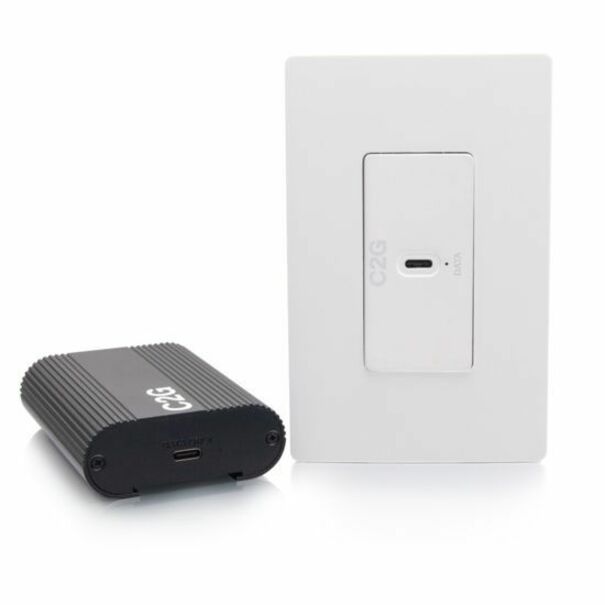

This plug-and-play solution consists of one wall plate and one box (each can be used as either a transmitter or a receiver).
This USB extender supports data transmission only-no DisplayPort Alt Mode video support.
This package includes:
1 x Wall Plate Transmitter
1 x Box Receiver
1 x Face Plate
- Tested and proven to support leading PTZ cameras at 1080p or 4K resolutions depending on the camera
- Extends a USB camera up to 150ft (45.7m) over Cat6
- Lower power consumption - typically 0.5W
- Bi-directional data and power transfer - simplifies installation by allowing the same module to be used as either a transmitter or receiver
- As easy to use as a passive cable. Plug and play with no software or drivers required
- Up to 1.5A power delivery from host to device
- Optional external power to support high-current devices(up to 3A)
- Supports a dual-mode USB-C device when explicit device mode is selected.
- Compatible with USB 2.0. Compatible to USB 1.1 if a USB 2.0 hub is used on the device end.
- Backed by a 5-year warranty
| Brand | |
|---|---|
| Brand | Legrand Group |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Plate |
| General Features | |
|---|---|
| Maximum Operating Distance | 150 ft |
| Supported Video Modes | 1080p |
| Manufacturer | Legrand Group |
| Video Ports | |
|---|---|
| HDBase-T | Yes |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
