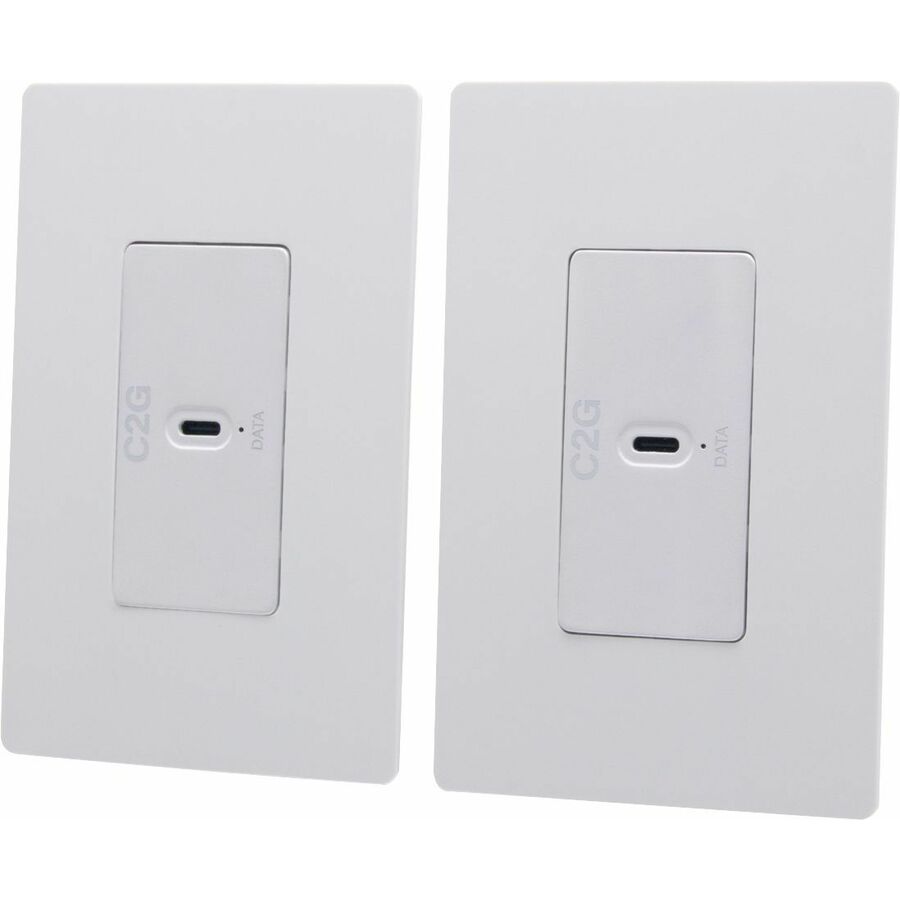

C2G Superbooster 1-Port USB over Cat6a Wall Plate to Wall Plate Extender Kit - USB 3.2 Gen1 (5Gbps)

564.49 564.49
564.49

564.49 / Units
  • Brand
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Connectivity Technology
  • USB
  • Number of USB Ports
  • Network (RJ-45)
  • Twisted Pair Cable Standard
  • HDBase-T
  • Form Factor
  • Product Color
  • Color Family
  • Length
  • Receiver Width
  • Receiver Height
  • Receiver Depth
  • Transmitter Depth
  • Transmitter Height
  • Transmitter Width
  • Maximum Video Resolution
  • Input Voltage
  • Graphics Modes
  • Maximum Operating Distance
  • Supported Video Modes
  • Environmental Compliance
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Application/Usage
  • Manufacturer Website Address
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

C2G Superbooster USB Extenders deliver reliable USB signal transmission for USB devices, allowing devices such as cameras, interactive whiteboards and printers to be placed at greater distances from the host computer.

Your USB extender shouldn't cost more than your camera. C2G's new USB 3.2 extenders use chipset technology that is more economical than other USB 3.2 extenders currently on the market.

What's more, this C2G Superbooster USB Extender has undergone rigorous compatibility testing with industry-leading video conferencing cameras, ensuring total reliability and deployment confidence, plus saving valuable time for AV integrators as well.

C2G's Superbooster® USB Extender provides reliable USB data extension from a computer to a USB device up to 295 feet (90m) over a Cat6a F/FTP network cable - making it an ideal solution for conference rooms, command centers, classrooms, auditoriums and medical facilities.

This plug-and-play solution consists of one USB 3.2 Gen1 Extender Wall Plate (transmitter), one USB 3.2 Gen1 Extender Wall Plate (receiver), 24V/1A multinational power supply with conversion plug and 2-pin Phoenix male head (3.5mm pitch), two 2-pin 3.5mm Phoenix connectors (male), and four machine screws.

  • Tested and proven to support leading PTZ cameras at 1080p or 4K resolutions depending on the camera
  • Extends USB 3.2 Gen 1 data signal up to 295ft (90m) over Cat6a F/FTP cable
  • USB 3.2 connectivity with data transfer rate up to 5Gbps
  • Backwards compatible to USB 2.0 and USB 1.1
  • Perfect for extending cameras, white boards, storage drives, and other high bandwidth USB devices
  • Plug and play - no drivers required
Brand
Brand Legrand Group
GPU / Graphics
Graphics Modes 4K
Power & Battery
Input Voltage 24 V
Networking & Connectivity
Connectivity Technology Wired
USB Ports
USB Yes
Number of USB Ports 2
Ethernet Port
Number of Network (RJ-45) Por 2
Network (RJ-45) Yes
Camera / Webcam
Maximum Video Resolution 3840 x 2160
Size / Dimensions
Form Factor Wall Mountable
Receiver Width 1.72"
Receiver Height 4.19"
Receiver Depth 1.51"
Transmitter Depth 1.51"
Transmitter Height 4.19"
Transmitter Width 1.72"
General Features
Maximum Operating Distance 295.28 ft
Supported Video Modes 1080p
Manufacturer Legrand Group
Video Ports
HDBase-T Yes
Cables
Twisted Pair Cable Standard Category 6a
