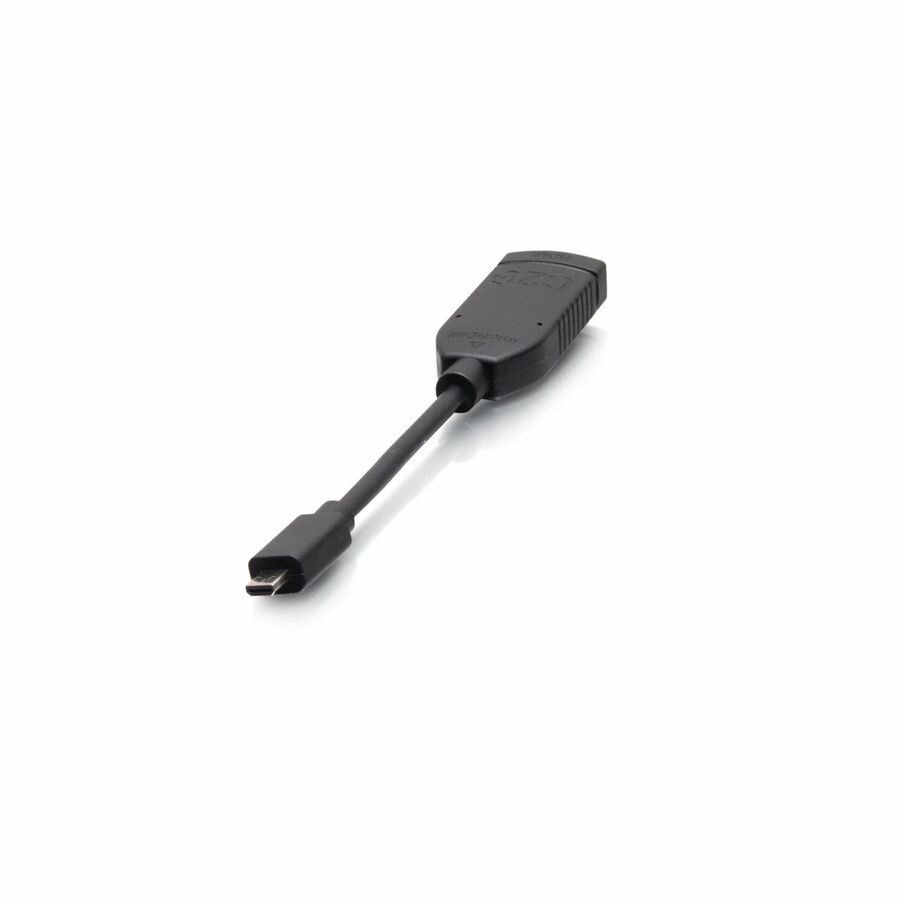

This Micro HDMI to HDMI Dongle Adapter with Antimicrobial Technology is a great addition to your existing HDMI Adapter Ring - an easy and convenient solution for connecting a micro HDMI port to an HDMI enabled device in your home or office. This adapter carries a digital video signal, supporting up to a 4K resolution and meets the requirements for high performance applications.
Avoid frustration by simply plugging the adapter into your computer, then attach it to the existing HDMI cable from your monitor or projector. The portable, compact design also makes it easy to carry in a laptop bag when traveling or on the go.
An added layer of antimicrobial product protection that's built into the connectors of the HDMI Dongle Adapter Rings to preserve their surface. The active ingredient enables the connectors to inhibit the growth of microbes such as bacteria and mold that can cause odors, staining, and material degradation. The technology works to keep the connectors continuously fresh and clean.
Easily attach this Micro HDMI Dongle Adapter to any of our HDMI Adapter Rings .
Note:BioCote® technology is built into Legrand HDMI Dongle Adapter Ring materials to inhibit the growth of microorganisms that may affect this product. BioCote does not protect users or others against bacteria, viruses, germs, or other disease organisms. This technology is not a substitute for good cleaning practices.
SIGNAL SPECIFICATIONS
- Testing: 100% Functional Test at 4K/30Hz
ELECTRICAL SPECIFICATIONS
- Conductor Resistance: at 20°C, 32AWG: 588Ω/KM
- Voltage Rating: 30V
- Insulation Resistance: 10 Ω/KM min at 20°C DC 500V
- Dielectric Strength: AC 500V/1 Minute No Breakdown
PHYSICAL SPECIFICATIONS
- Temperature Rating: 80°C
- Minimum Bend Radius: 25mm (about 0.98 in)
- Cable Jacket Rating: VW-1
- Tensile Strength: Unaged: 1500psi; Aged: 70% min.
- Dongle style adapter reduces strain, prolonging the life of the port
- Plug and play, so no additional software or drivers needed
| Brand | |
|---|---|
| Brand | Legrand Group |
| Screen / Display | |
|---|---|
| Maximum Resolution Supported | 3840 x 2160 |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
| Cables | |
|---|---|
| Connector Type on First End | Micro HDMI Digital Audio/Video |
| Connector Gender on First End | Male |
| Connector Type on Second End | HDMI Digital Audio/Video |
| Connector Gender on Second End | Female |
| Connector Plating | Nickel |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Miscellaneous | |
|---|---|
| Adapter Type | HDMI/Micro HDMI |
