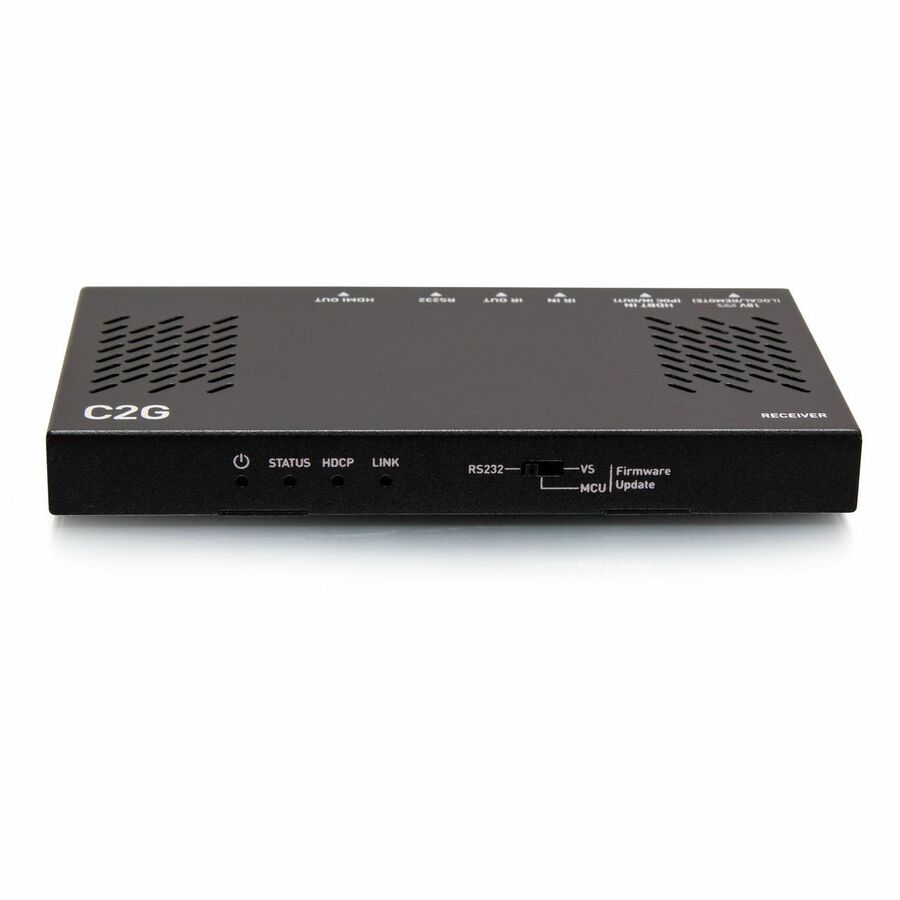

The HDMI Ultra-Slim HD BaseT + RS232And IR over Cat Extender Box Receiver - 4K 60Hz allowsa4K HDMI source to be extended up to130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extended to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.
This receiver accepts HDMIsignalsover asinglenetworkpatchcable.Extend 4K HDMIup to 115feetand 1080pup to230feetusing a Cat 5e or Cat6 cable.For longer 4K distances,extend 4K HDMI or up to 130 feet using a Cat6a cable.This HDMI HDBaseT receiver is HDCP 2.2 compliant, making surethat the connection from the source is secure. With bi-directional PoC support,one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations. Support this HDBaseT system that is already deployed in the field by upgrading firmware through the RS232port.
This HDBaseT receiver works with C2G30014, C2G30017, C2G30018, C2G30021,and C2G30022.
Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.
Note: Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230ft.Shielded,solid conductor Cat6or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled, is run near other high-frequency signaling cables,or in high EMI/RFI environments.
