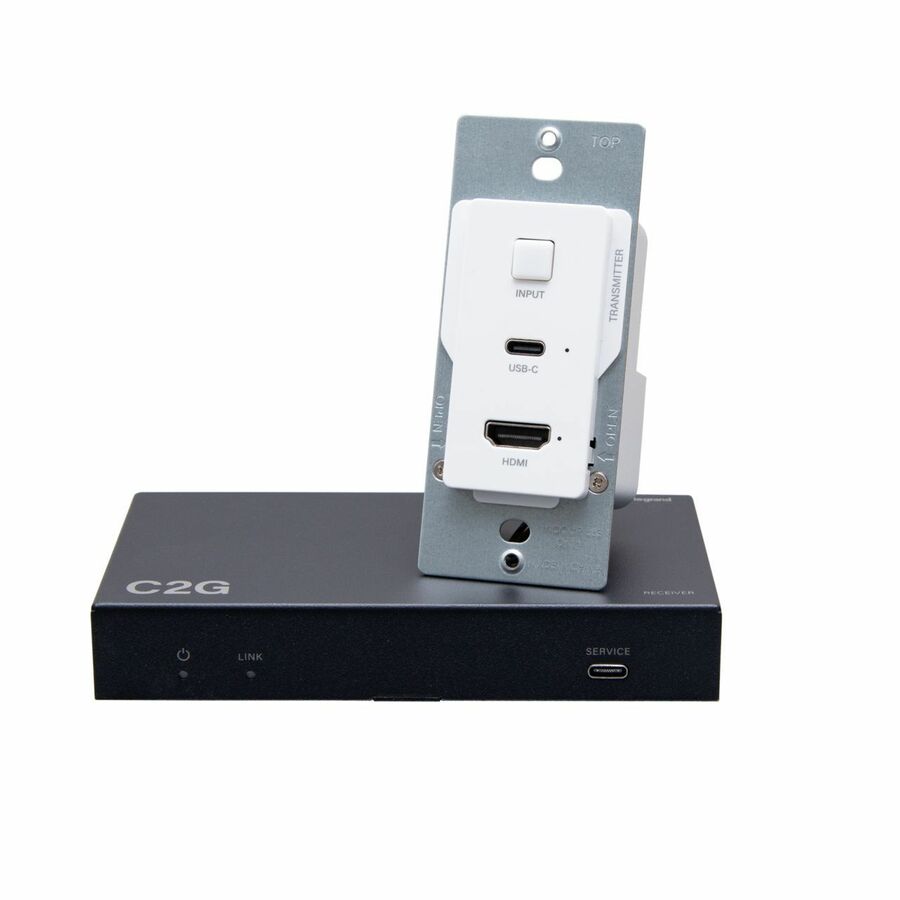

The HDMI™ HDBaseT + USB-C® Data and Video over Cat Extender Wall Plate Transmitter to Box Receiver - 4K extends a 4K HDMI source, USB 2.0, and RS-232 control signals over a single Cat6a Ethernet cable.It supports distances of up to 230ft (70m) for 1080p output or 130ft (40m) for 4K60Hz HDMI and 4K30Hz USB output.This is an ideal solution where USB Video and Data signals must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling. This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure.
- Extends uncompressed HDMI and USB-C video signals, RS-232 control, and USB 2.0 data over a single CAT6a cable, supporting distances up to 230 ft (70 m) for 1080p or 130 ft (40 m) for 4K@60Hz HDMI and 4K@30Hz USB signals.
- USB-C port supports 4K 30Hz video transmission via DP Alt Mode (v1.2a) and USB 2.0 data transfer.
- HDMI output on the receiver supports downscaling from 4K 60Hz to 1080p, without frame rate conversion
- HDCP 2.2 compliant ensures a secure connection between the source and display
- Transmitter supports manual and automatic switching (following the last-in-first-out rule)
- Two USB-A ports on the receiver supporting output power up to 5V/1.4A
- 18V/2.5A Universal Power Supply with US/EU/UK/AU Plug Converters Included
| Brand | |
|---|---|
| Brand | Legrand Group |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 4.97 oz |
| Form Factor | Wall Plate |
| Receiver Weight (Approximate) | 11.04 oz |
| Receiver Height | 0.91" |
| Receiver Depth | 2.95" |
| Transmitter Height | 4.19" |
| General Features | |
|---|---|
| Maximum Operating Distance | 229.66 ft |
| Supported Video Modes | 1080p |
| Manufacturer | Legrand Group |
| Video Ports | |
|---|---|
| HDBase-T | Yes |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6a |
