This High Speed HDMI to Mini HDMI Cable with Ethernet supports all HDMI 2.0 features and is perfect for connecting a smartphone, tablet or other mobile device to an HD display for home theater or desktop applications. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware.
Electrical Characteristics
Nominal Impedance - 100 ± 10
Nominal Velocity of Propagation - > 1.78ns
DC Resistance - 376/km
Dielectric Strength - AC 500V - 1 minute
Insulation Resistance - 100
Physical Characteristics
Voltage Rating - 30V
Minimum Bend Radius - 70mm
Temperature Rating - 80°C
Approvals - RoHS Compliant
Warranty - Lifetime
Package Type - Polybag
Conductor 1 (5 pair)
Conductor Type - 30AWG (7/0.10), Tinned Copper
Insulation - Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D. - 0.8mm
Drain Wire - 30AWG (7/0.10), Tinned Copper
Shield - Aluminum Foil, 100% Coverage
Conductor 2 (4 conductors)
Conductor Type - 30AWG (7/0.10), Tinned Copper
Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.6mm
Connector
Connector Type - HDMI® - Type A
Pin Construction - Phosphor Copper
Plating - 3m Gold
Insulation - Black LCP
Hood - 45P™ PVC, Black
Dimensions (HxWxL) - 10.0 x 20.1 x 37.1mm
Connector
Connector Type - HDMI® - Type C
Pin Construction - Phosphor Copper
Plating - 3m Gold
Insulation - Black LCP
Hood - 45P™ PVC, Black
Dimensions (HxWxL) - 8.3 x 14.0 x 32.7mm
Overall Cable
Drain Wire - 30AWG (7/0.10), Tinned Copper
Foil Shield - Aluminum Foil, 100% Coverage
Braided Shield - 16/4/0.12, Aluminum/Magnesium, 50% Coverage
Jacket - PVC, Black, O.D. - 6.0 ± 0.2mm

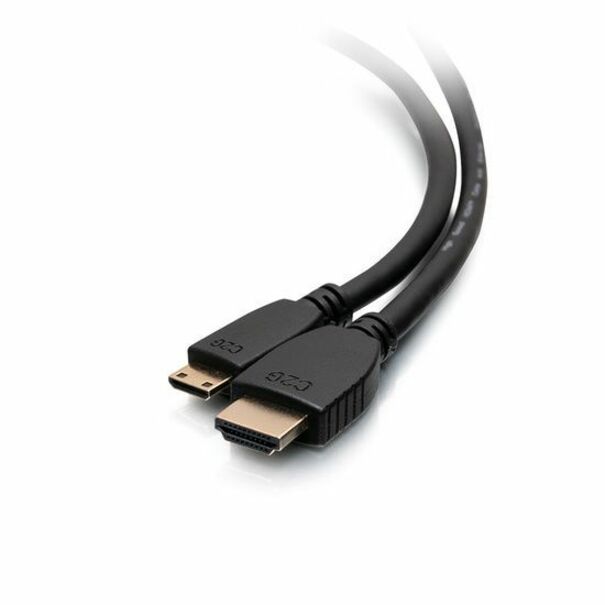

- 6ft High Speed HDMI to Mini HDMI Cable with Ethernet
- HDMI M to HDMI Mini M Cable
- Supports resolutions up to 4K (4096 X 2160) at 60Hz
- Audio / Video Cable
- Supports 32 audio channels for an immersive audio experience
- 6 ft / 6 foot / 6' / 6 Feet
- C2G Lifetime Warranty
- Connector 1: (1) HDMI Male
- Connector 2: (1) HDMI Mini Male
- Certifications: NDAA 889, Prop 65, REACH, RoHS, TSCA
| Brand | |
|---|---|
| Brand | Legrand Group |
| Screen / Display | |
|---|---|
| Supported Resolution | 4096 x 2160 |
| General Features | |
|---|---|
| Data Transfer Rate | 18 Gbit/s |
| Manufacturer | Legrand Group |
| Cables | |
|---|---|
| Conductor | Copper |
| Cable Length | 5.91 ft |
| Cable Type | HDMI |
| Connector Type on First End | HDMI 2.0 Type A Digital Audio/Video - Male |
| Connector on First End Details | 1 x 19 Pin HDMI 2.0 Type A Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | Mini HDMI 2.0 Type C Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector Plating | Gold |
| Contact Material | Gold-flash |
| Connector Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Type | VW-1 |
| Jacket Color | Black |
| Shielding | Yes |
| Shielding Material | Aluminum/Magnesium |
| American Wire Gauge | 30 AWG |
| Insulation Color | Black |
| Insulation Material | High-density Polyethylene (HDPE) |
