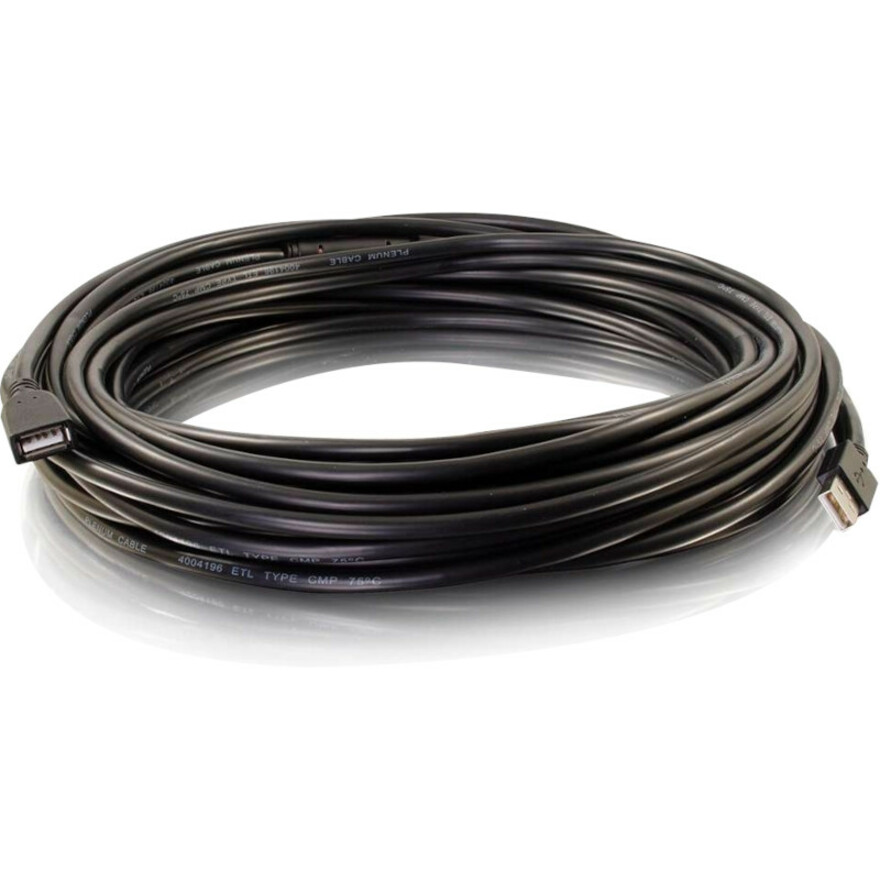

This USB Active Extension Cable is an ideal solution for USB applications which require more cable length than the 5 meter (16.5ft) length limitation of USB. This extension cable actively buffers the incoming and outgoing signals to ensure compliance with the USB 2.0 specification for electrical and timing minimums. The plenum rated jacket meets the requirements for an installation in a commercial space, and both low and high speed USB devices will function equally well with this extension.
- Plenum, CMP-rated jacket
- Supports USB 2.0 bandwidth
- Draws power required for operation through the USB port
| Brand | |
|---|---|
| Brand | Legrand Group |
| General Features | |
|---|---|
| Data Transfer Rate | 480 Mbit/s |
| Manufacturer | Legrand Group |
| Cables | |
|---|---|
| Cable Length | 50 ft |
| Cable Type | USB |
| Cable Characteristic | Extension Cable |
| Connector Type on First End | USB 2.0 Type A - Male |
| Connector on First End Details | 1 x USB 2.0 Type A - Male |
| Connector Type on Second End | USB 2.0 Type A - Female |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Type | CMP |
| Shielding | Yes |
| Shielding Material | Aluminum Mylar Foil |
| American Wire Gauge | 24 AWG |
| Insulation Color | Red |
