This Snagless Shielded Cat6a patch cable is ideal for use with 10GBase-T ports and equipment, such as network adapters, hubs, switches, routers, DSL/cable modems and patch panels, and will protect a high speed 10 Gigabit network connection from noise and electromagnetic interference. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use.
- Designed for network adapters, hubs, switches, routers, HDBaseT applications and more
- Supports 10 Gigabit networks up to 328ft for fast data transmission and maximum performance
- Meets the ANSI/TIA-568-C.2 Cat6a requirements for supporting a wide variety of applications
- Constructed with shielded twisted pair (STP) wires, designed to protect a high speed network from noise and electromagnetic interference
- Snagless connector design for high density environments and protecting the RJ-45 connector's lock
- Available in a variety of colors to color-code a network
| Brand | |
|---|---|
| Brand | Legrand Group |
| Appearance | |
|---|---|
| Boot Type | Snagless |
| General Features | |
|---|---|
| Data Transfer Rate | 10 Gbit/s |
| Manufacturer | Legrand Group |
| Cables | |
|---|---|
| Cable Shielding Type | Shielded Twisted Pair (STP) |
| Cable Length | 3 ft |
| Cable Type | Category 6a |
| Cable Characteristic | Patch Cable |
| Connector Type on First End | RJ-45 Network - Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector Plating | Gold |
| Connector Material | Gold |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Type | Standard Non-rated |
| Shielding | Yes |
| American Wire Gauge | 26 AWG |
| Number of Pairs | 4 |
| Number of Conductors | 8 |
| Insulation Material | FM-PE |
| Miscellaneous | |
|---|---|

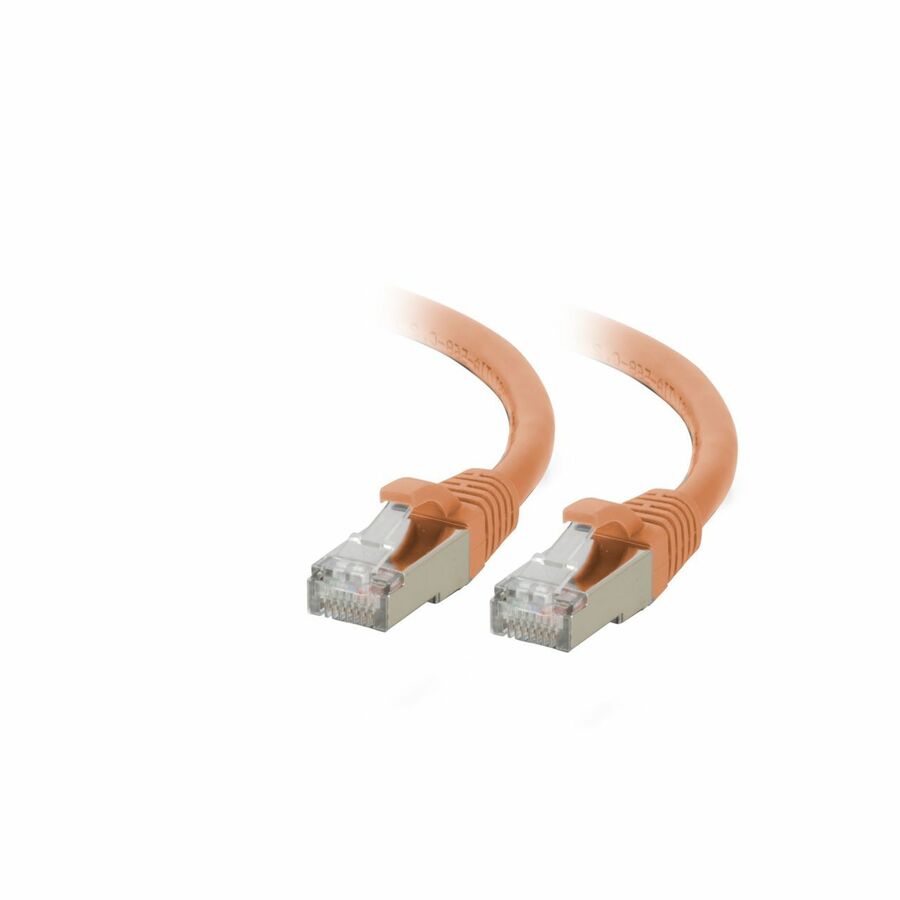

| Product Name | C2G 3ft (0.9m) Cat6a Snagless (STP) Ethernet Network Patch Cable - Orange |
