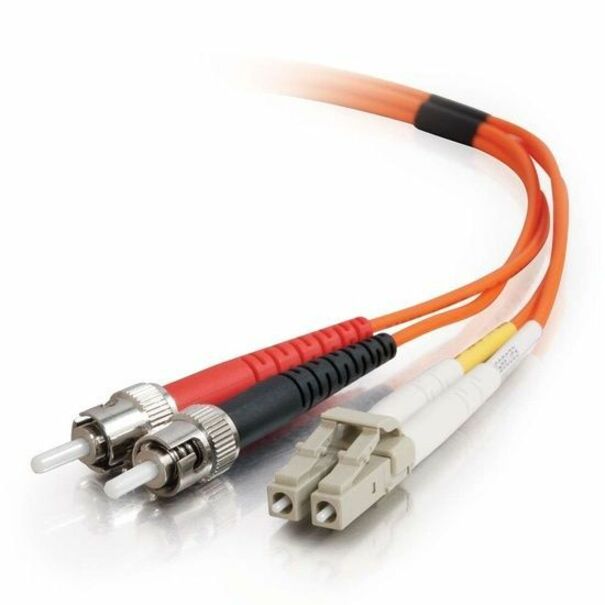

With LC to ST termination, this high quality fiber optic patch cable is specifically designed for ethernet, multimedia, or communication applications. The small LC connector takes HALF the size of traditional SC and ST fiber connectors, since it offers twice the port density of conventional SC and ST connectors to satisfy the need for higher port density in telecom closets, equipment rooms, and work areas.
The LC connector's RJ-style latch clip design gives each connection greater durability in resisting snagging, pulls, strains and impacts during cabling installs and maintenance. Plus, it is easy to engage and disengage with the "telephone jack style" release mechanism. The ST connector features a bayonet locking system.
The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, immune to electrical interference.
- Lifetime Warranty
- Tested in accordance with EIA/TIA-455-171A
- Connector 1: (1) LC Male Connector 2: (1) ST Male
- OFNR - Riser rated jacket
- OM1 - 62.5Supports 200/500 MHz km OFL at 850/1300nm
| Brand | |
|---|---|
| Brand | Legrand Group |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 62.5/125 µm |
| Cable Length | 3.28 ft |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Type | Duplex |
| Fiber Category | OM1 |
| Fiber Optic Mode | Multi-mode |
| Connector Type on First End | LC Network |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | ST Network |
| Connector Gender on Second End | Male |
| Jacket Type | Riser |
