This precision-engineered cable is fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). The DVI-D dual link configuration provides enough bandwidth for resolutions up to 2560x1600 pixels and allows high speed digital video transmission up to 9.9 Gbps. 28 AWG copper conductors are individually insulated in foam-polypropylene to minimize crosstalk, and ensure high speed, error-free transmission.
Tri-shielded undermold with dual foil shield and braid shield protects against unwanted EMI/RFI interference. Gold-plated contacts provide full conductivity with no data loss. PC and Mac compatible cable supports hot-plugging of DVI display devices. PC-99 color-coded: white
Please Note: Does not support analog video; only supports digital video signal.
- 3.3 Feet / 3.3 ft / 3.3'
- C2G Lifetime Warranty
- Gold-plated contacts
- 28 AWG copper conductors
- DVI Cable / DVI-D Cable
- Perfect for connecting digital displays and projectors to a PC
- Support resolutions up to 2560x1600
- 24-pin digital video cable with transfer rates up to 9.9 Gbps
- DVI-D Dual Link Male to Male

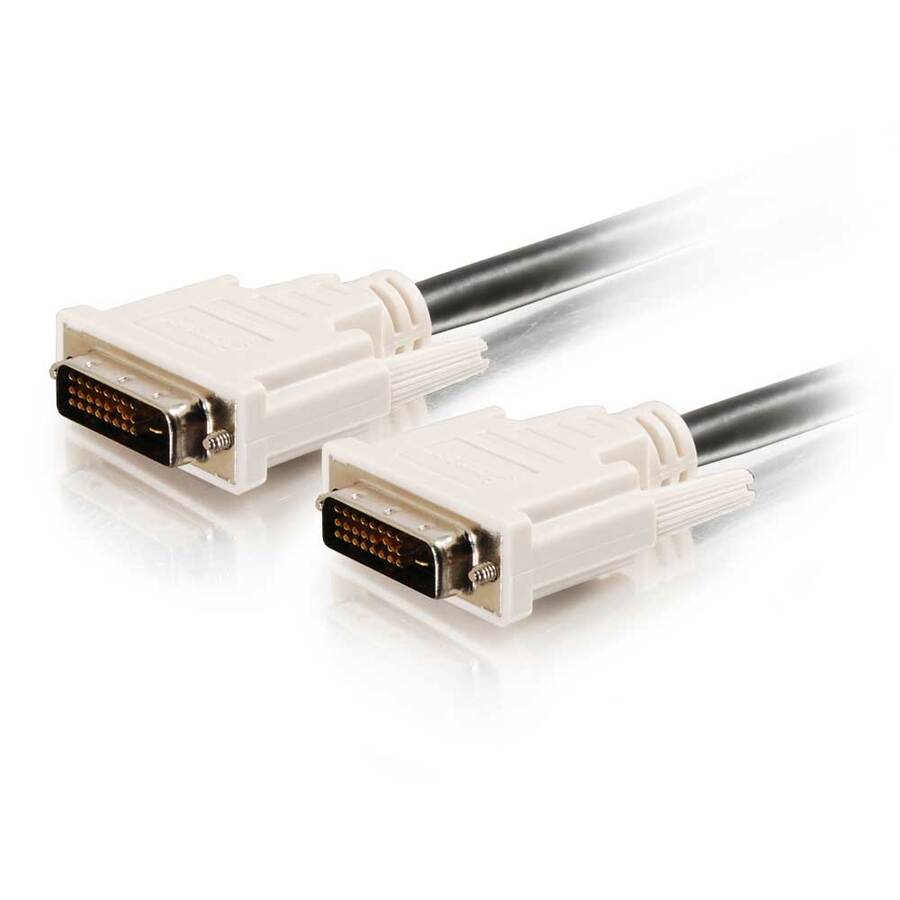

- C2G 3.3ft DVI-D Dual Link Digital Video Cable
| Brand | |
|---|---|
| Brand | Legrand Group |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
| Cables | |
|---|---|
| Conductor | Copper |
| Cable Length | 3.28 ft |
| Connector Type on First End | DVI-D (Dual-Link) Digital Video - Male |
| Connector on First End Details | 1 x 24-pin DVI-D (Dual-Link) Digital Video - Male |
| Connector Type on Second End | DVI-D (Dual-Link) Digital Video - Male |
| Connector on Second End Details | 1 x 24-pin DVI-D (Dual-Link) Digital Video - Male |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
