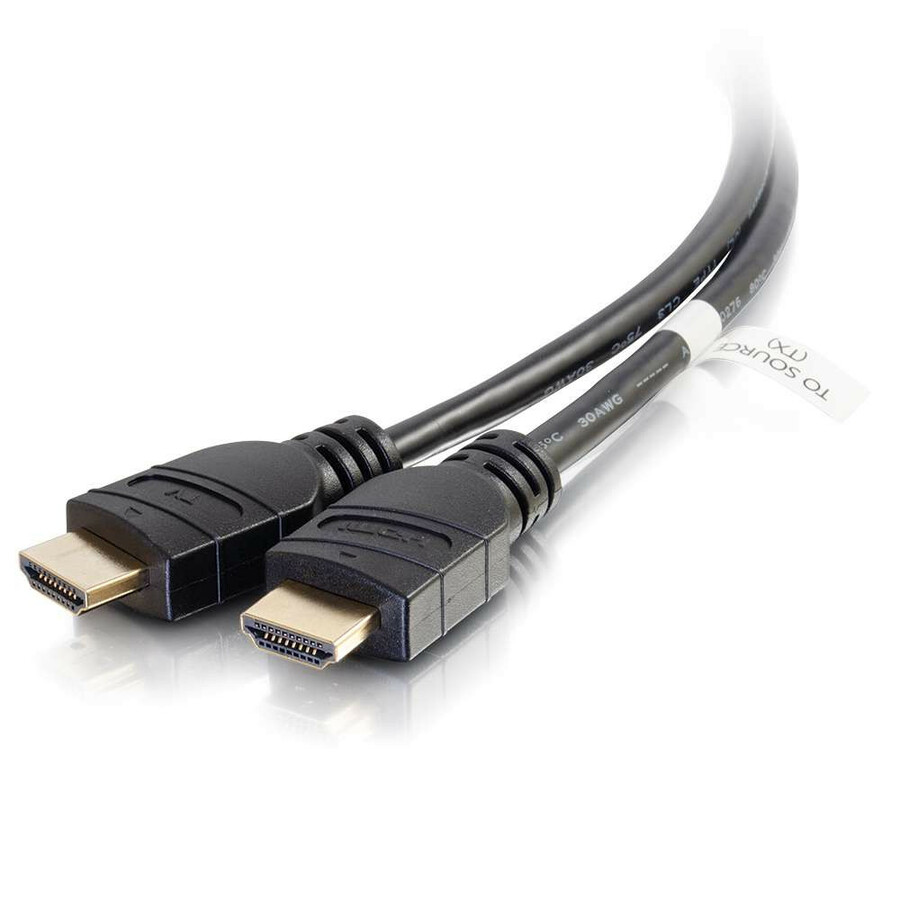

C2G Plus Series Active High Speed HDMI Cable is the perfect solution for extending HDMI signals in classrooms, conference rooms, houses of worship, and other commercial environments. This cable features a built-in signal booster that supports HDMI A/V connections at longer distances than non-active cables. They support resolutions up to 4K (4096 x 2160, 4:4:4), bandwidths up to 18Gbps, HDR for higher contrast ratios and vivid colors, plus 32 uncompressed digital audio channels, making them ideal for commercial environments.
These cables are designed to exceed the highest measure of HDMI performance and are backward compatible with previous HDMI specifications for existing HDMI devices. They have a built-in signal booster that supports HDMI A/V connections at longer distances and do not require an external power adapter.
The Active High Speed HDMI Cables are directional cables that require the connector labeled HDMI installed at the source device and connector labeled TV to be installed to the display.
- Ethernet Channel (100Mbits/s), and ARC (Audio Return Channel)
- Supports extended CEC (Consumer Electronics Control) commands and functions, HDMI
- Supports DTS-HD Master Audio™, Dolby TrueHD™, DTS, Dolby AC3 & DSD Audio
- Supports up to 32 audio channels and a 1536kHz audio sampling rate
- Supports 8, 10, 12, & 16bit per channel deep color
- Data speeds up to 18.0Gbps
- Supports full HD Blu-ray and HD DVD video
- CL3-rated jacket for in-wall installations
- Supports resolutions up to 4096 x 2160 (4K x 2K) at 60hz 4:4:4, including 3D and dual video streams (Dual View)
| Brand | |
|---|---|
| Brand | Legrand Group |
| Screen / Display | |
|---|---|
| Supported Resolution | 4096 x 2160 |
| Size / Dimensions | |
|---|---|
| Shipping Height | 1.50" |
| Shipping Width | 6" |
| Shipping Weight (Approximate) | 7.50 oz |
| General Features | |
|---|---|
| Data Transfer Rate | 18 Gbit/s |
| Manufacturer | Legrand Group |
| Cables | |
|---|---|
| Cable Length | 15 ft |
| Cable Type | HDMI |
| Connector Type on First End | HDMI 2.0 Digital Audio/Video - Male |
| Connector on First End Details | 1 x HDMI 2.0 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video - Male |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shielding | Yes |
| American Wire Gauge | 30 AWG |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
