Designed for today's enterprise and data center environments, Broadcom's 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports.

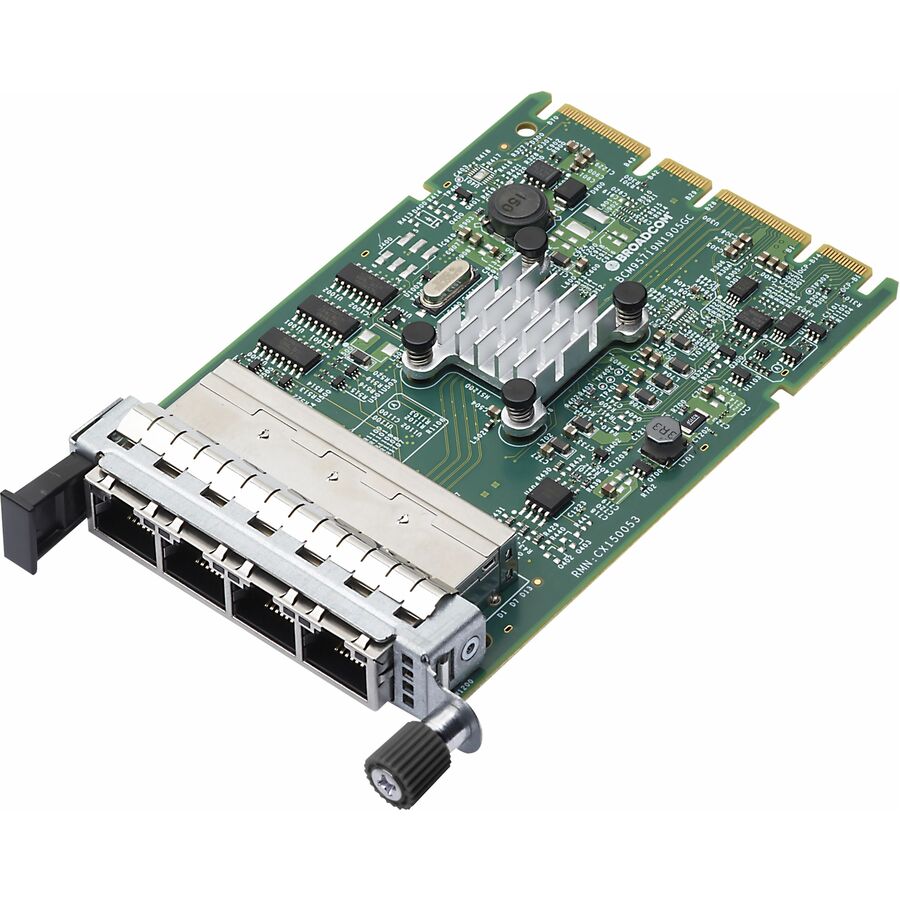

The N41T quad-port 1Gb OCP 3.0 adapter is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The N41GBT OCP 3.0 adapter includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association. These IOV features enable the BCM5719 to support the VMWare® NetQueue and Microsoft® VMQ technologies.
The N41T OCP 3.0 adapter includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS-based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs.
- This Gigabit Ethernet card guarantees a replacement networking interface to client, server or workstation
- This 2000 MB/s bandwidth PCI Express 2.0 x4 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
- This quad ports network adapter is designed to meet the multi-port network connectivity needs of today's data centered environments demanding virtualization, converged infrastructure, and power reduction
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over the twisted pair cable
| Brand | |
|---|---|
| Brand | Broadcom Corporation |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Manufacturer | Broadcom Corporation |
| Misc Ports | |
|---|---|
| Total Number of Ports | 4 |
| Host Interface | PCI Express 2.0 x4 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Miscellaneous | |
|---|---|
| Product Name | N41T - 4 x 1GbE OCP 3.0 Adapter |
