Brainboxes SW-535 Ethernet Switch

$ 166.49 $ 166.49
$ 166.49

$ 166.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Port/Expansion Slot Details
  • Form Factor
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • Input Voltage
  • TAA Compliant
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

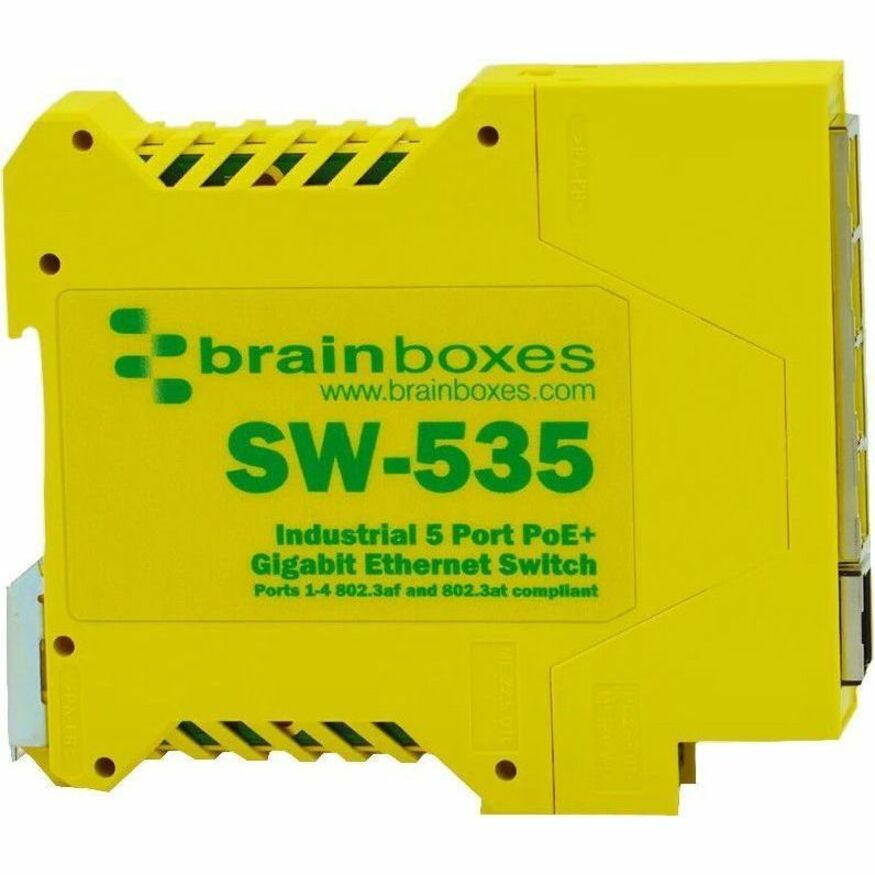

Industrial Compact 5 Port PoE+ Gigabit Ethernet device.

Simplify industrial setups with streamlined power and automatic PoE, setting the standard for efficient CCTV and Vision Systems.

Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required.

Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more.

  • Streamlined installation - electrical power and data over the same cable
  • 4 PoE+ capable ports - fully compliant to IEEE 802.3af/at
  • High PoE power budget 90W @ 70�C between all 4 PoE ports simultaneously - efficiently deliver power to connected devices
  • Robust industrial design - operating temp -40°C to +70°C / -40°F to +158°F
  • Redundant dual power inputs +44V to +57V DC: enhances system reliability
  • Smart LED indicators: real-time status information, quick visual monitoring
  • Compatible DIN rail power supply available:PW-301
Brand
Brand Brainboxes Limited
Power & Battery
PoE Budget 90 W
Input Voltage 57 V DC
Power Source Power Supply
Power Consumption 5.50 W
Networking & Connectivity
Network Technology 10/100/1000Base-T
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 5
PoE (RJ-45) Port Yes
Size / Dimensions
Form Factor Compact
General Features
Maximum Data Transfer Rate 125 MB/s
Manufacturer Brainboxes Limited
Misc Ports
Port/Expansion Slot Details 5 x 10/100/1000BASE-T RJ-45 PoE+ Network Port
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Compliance & Certification
TAA Compliant Yes
