Brainboxes SW-195 Ethernet Switch

$ 202.49 $ 202.49
$ 202.49

$ 202.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Uplink Port
  • Number of SFP Slots
  • Port/Expansion Slot Details
  • Form Factor
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • Input Voltage
  • TAA Compliant
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

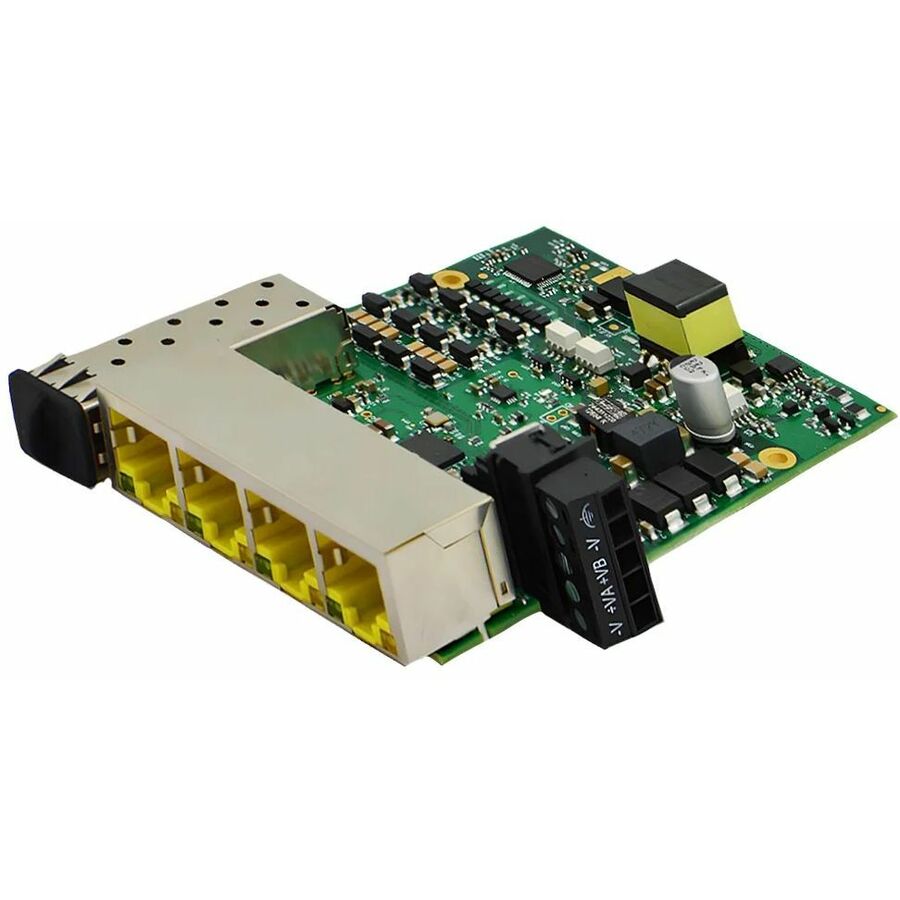

Embedded PoE+ Industrial Gigabit SFP Ethernet switch.

Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.

Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.


  • High-speed, long-distance data transfer in a single, streamlined solution
  • SFP uplink - securely transmit lightning-fast data over longer distances
  • 4 PoE+ capable ports - fully compliant to IEEE 802.3af/at
  • High PoE power budget 90W @ 70�C between all 4 PoE ports simultaneously - efficiently deliver power to connected devices
  • Embedded industrial design - operating temp -40°C to +70°C / -40°F to +158°F
  • Redundant dual power inputs +44V to +57V DC: enhances system reliability
  • Smart LED indicators: real-time status information, quick visual monitoring
Brand
Brand Brainboxes Limited
Power & Battery
PoE Budget 90 W
Input Voltage 57 V DC
Power Source DC
Power Consumption 5.30 W
Networking & Connectivity
Network Technology 1000Base-X
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 4
PoE (RJ-45) Port Yes
Uplink Port Yes
Size / Dimensions
Form Factor Compact
General Features
Maximum Data Transfer Rate 125 MB/s
Manufacturer Brainboxes Limited
Expansion Slots
Total Number of Expansion Slots 1
Expansion Slot Type SFP
Number of SFP Slots 1
Misc Ports
Port/Expansion Slot Details 1 x 1000Base-X Gigabit Ethernet SFP Expansion Slot
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Compliance & Certification
TAA Compliant Yes
