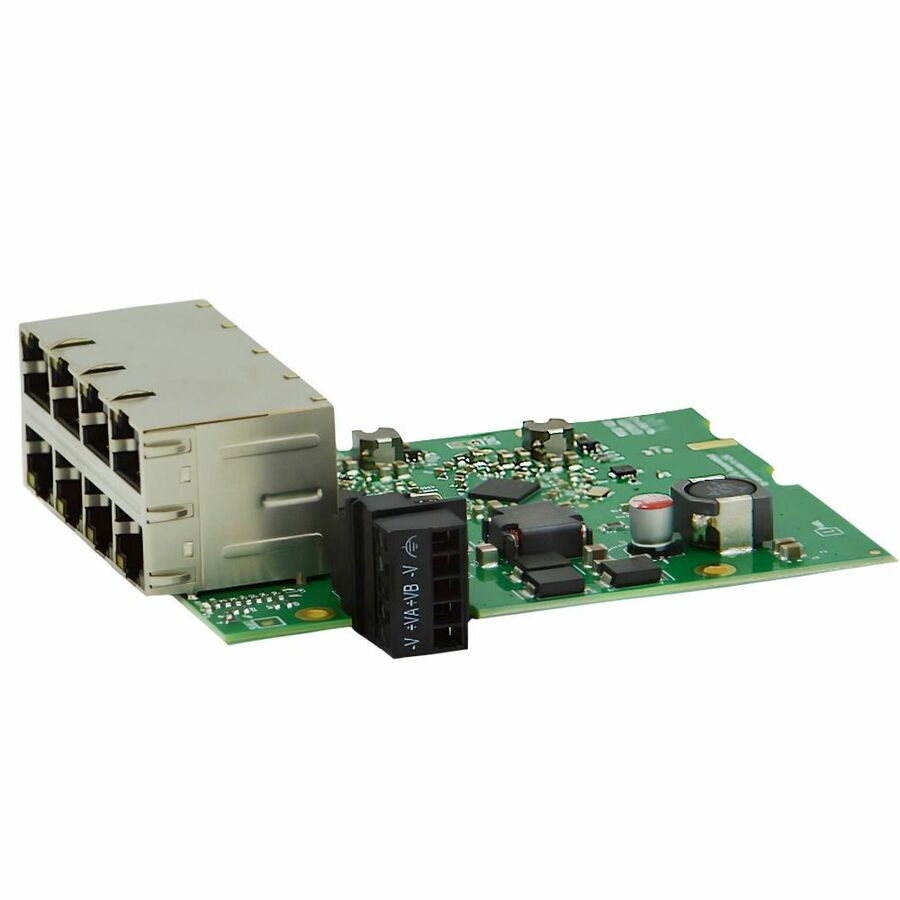

Designed for network intensive applications where rapid data transmission is key, Brainboxes Industrial Gigabit Ethernet Switches boast increased speed, efficiency and performance, making it easier to configure and support high-speed data transfer between devices and/or the central controls.
Backwards compatible; the range is available in a range of formats and specifications, can plug into older networks, and can connect to devices that are 10Mbs, Fast Ethernet (100Mbs) or Gigabit, whilst detecting the highest common speed between both ends of the connection.
- Wide voltage input range: +5V to +30VDC-Can be powered by a variety of sources
- Industrial temperature range-Operates reliably in extreme environmental conditions
- Redundant dual power inputs - Reduces the risk of power outages, ensuring continuous operation
- Low latency - Provides quick response times, critical for real-time communication applications
- Improved network efficiency - Ensures faster data transmission and minimal network congestion
| Brand | |
|---|---|
| Brand | Brainboxes Limited |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | Yes |
| Input Voltage | 30 V DC |
| Power Source | DC |
| Power Consumption | 6.50 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 128 MB/s |
| Manufacturer | Brainboxes Limited |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 8 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
