Overview
The perfect fit for any stable, future-proof system, even where space is limited.
- Stability of design guaranteed compatibility until at least 2035 (min. 10 years)

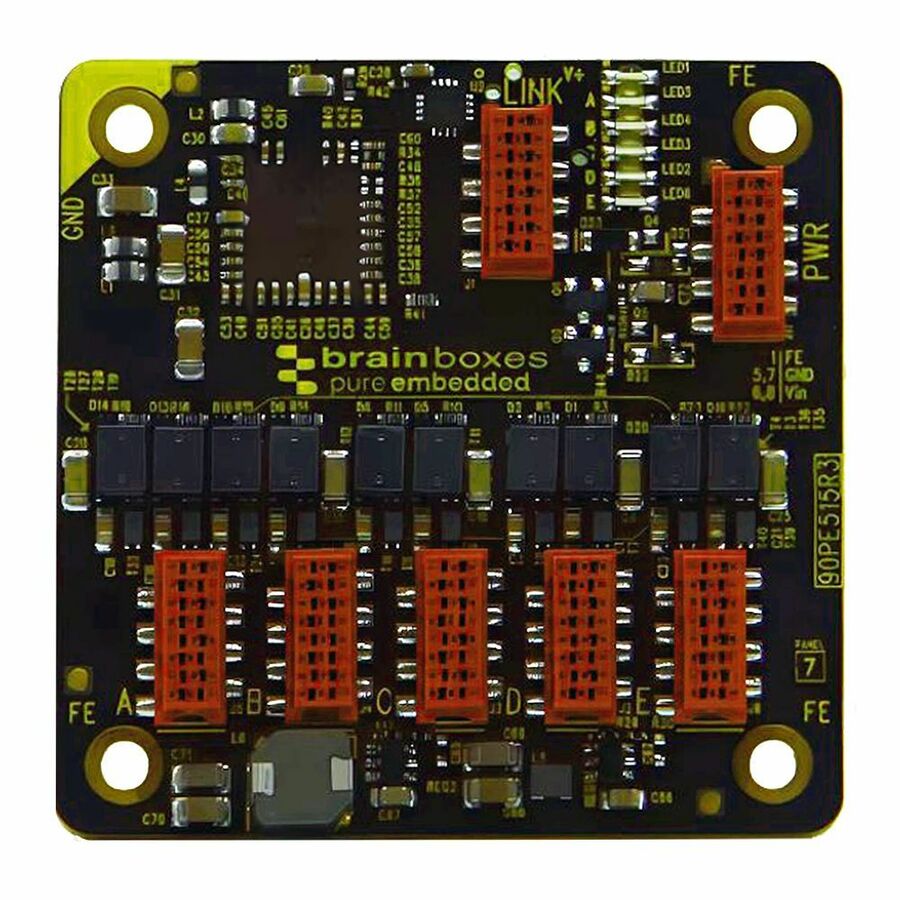

- Compact form - smaller than a standard business card (55x55mm)
- Seamless integration with design software - logical placements and fixed distances
- 3D CAD files
- Board-to-board and board-to-cable connection
- LEDs visible in all orientations - option to route through fibre
- 5 port 10/100/1000Mbps switch (10BASE-T/100BASETX/1000BASE-T)
- 3.3 to 5 VDC Input Reverse Polarity Protected
- Transient Voltage Protected
- 1500V magnetic isolation between ports
- Auto MDI/MDIX
- Power and link indicators for all ports visible from all angles
- Board-to-board and wire-to-board compatible
- IDC style connectors (Compatible with board-to-board and wire-to-board connections)
- IEEE 802.3x flow control
- Non-blocking layer 2 operation
| Brand | |
|---|---|
| Brand | Brainboxes Limited |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Power Source | DC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 5 |
| Size / Dimensions | |
|---|---|
| Form Factor | Compact |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 128 MB/s |
| Manufacturer | Brainboxes Limited |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 5 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
