Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited.

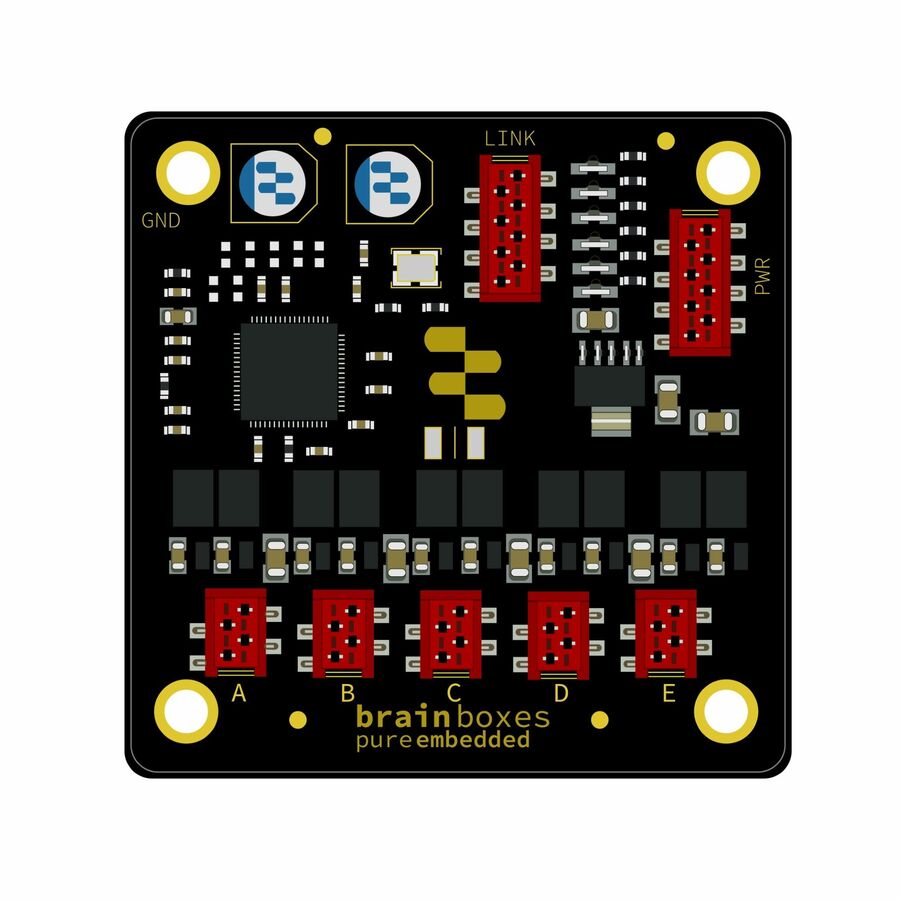

PE-505 Pure Embedded 5 Port Industrial Ethernet Switch has a mega compact form - at 55x55x10mm it's smaller than a standard business card.
3D CAD files and PCB footprints, combined with logical placements and fixed distances, provide seamless integration with design software.
Board-to-board and board-to-cable connection options, with LEDs visible in all orientations, with the option of routing through fibre optic light pipes.
- Eval-kit available
- Mega compact form - smaller than a standard business card (55x55x10mm)
- Industrial operating temp (-40 °C to +85 °C)
- Seamless integration with design software - logical placements and fixed distances
- Board to board and board to cable connection
- LEDs visible in all orientations - can be directed to outer casing via fibre optics or light pipe
- Comprehensive resources: DXF file, PCB footprint and 3D download
| Brand | |
|---|---|
| Brand | Brainboxes Limited |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Power Source | DC |
| Power Consumption | 2.50 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 5 |
| Size / Dimensions | |
|---|---|
| Form Factor | Compact |
| General Features | |
|---|---|
| Manufacturer | Brainboxes Limited |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 5 x Fast Etherent Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
