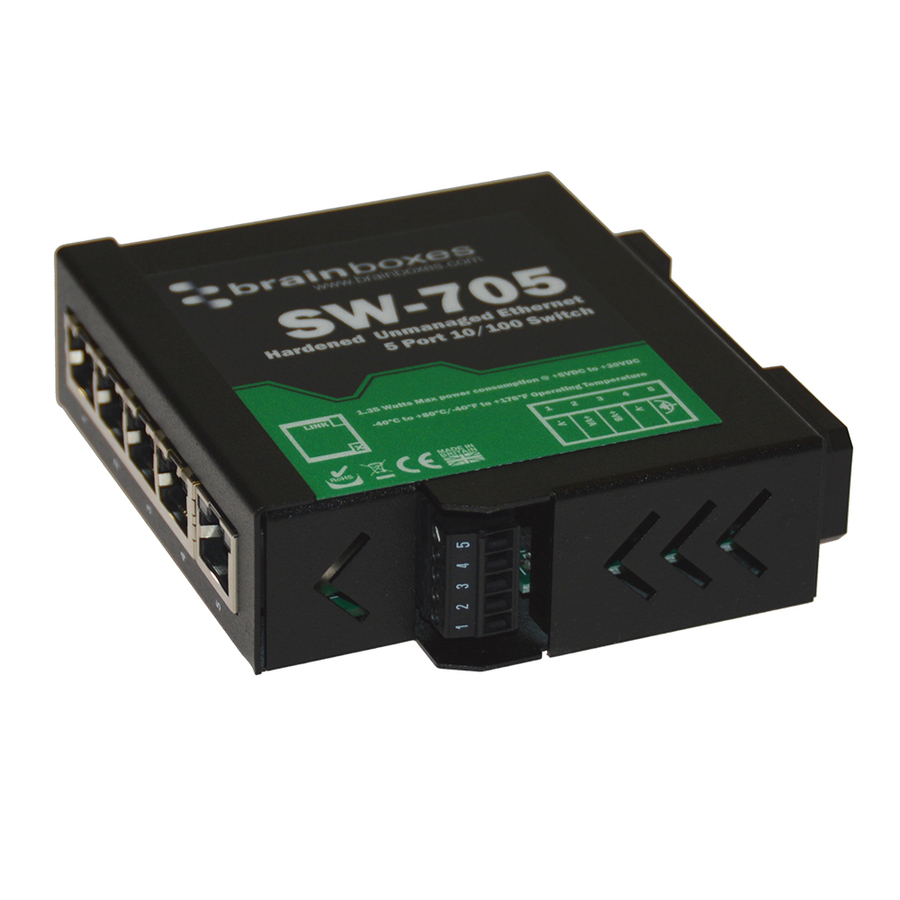

Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
- Integrated DIN Rail Mount with grounding
- Redundant dual power inputs: +5V to +30V DC
- 5 Port Hardened Ethernet Switch
| Brand | |
|---|---|
| Brand | Brainboxes Limited |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | No |
| Power Source | USB |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 5 |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail Mountable |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Brainboxes Limited |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
