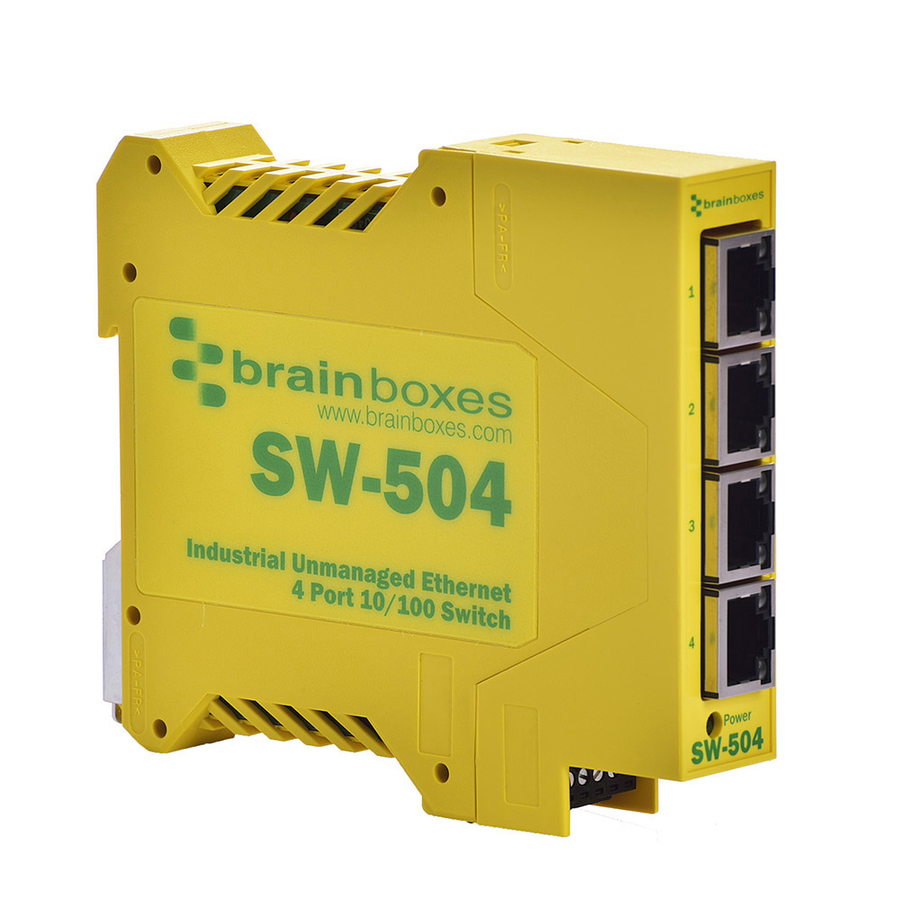

Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
- Slim Footprint Case, only 22.5mm wide
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
- Redundant dual power inputs: +5V to +30V DC
- Integrated DIN Rail Mount with grounding
- 4 Port Ethernet Switch
| Brand | |
|---|---|
| Brand | Brainboxes Limited |
| Power & Battery | |
|---|---|
| Power Source | USB |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100Base-TX |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Total Number of Network Ports | 4 |
| PoE (RJ-45) Port | No |
| Uplink Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Rail-mountable |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Brainboxes Limited |
| Misc Ports | |
|---|---|
| Stack Port | No |
| Port/Expansion Slot Details | 4 x Fast Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
Brainboxes Industrial Ethernet 4 Port Switch DIN Rail Mountable - 4 Ports - 10/100Base-TX - 2 Layer Supported - Rail-mountable - Lifetime Limited Warranty - TAA Compliant
