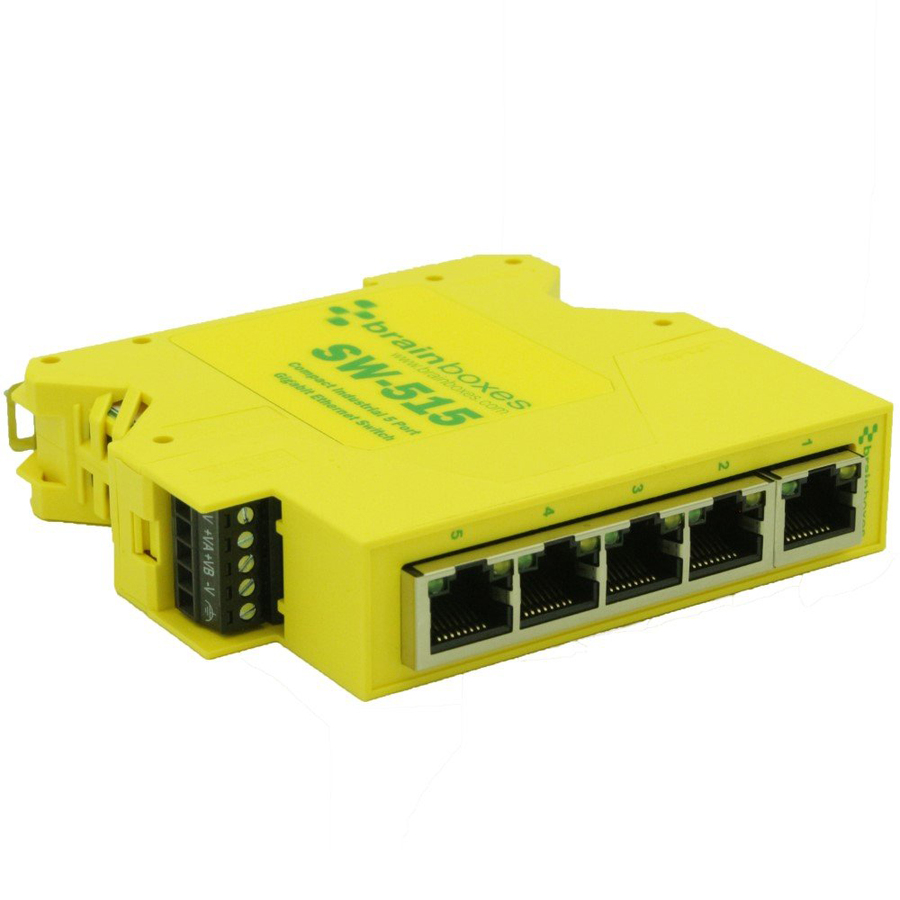

Compact industrial 5 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
- Small Footprint Case, only 23mm wide, 94mm deep
- Redundant dual power inputs - reduces risk of power outage
- Industrial operating temperature range: -40�C to +80�C/-40�F to +176�F - works in extreme conditions
- Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources
- 5 Gigabit Ethernet ports
| Brand | |
|---|---|
| Brand | Brainboxes Limited |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 5 |
| Uplink Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail Mountable |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Brainboxes Limited |
| Misc Ports | |
|---|---|
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
