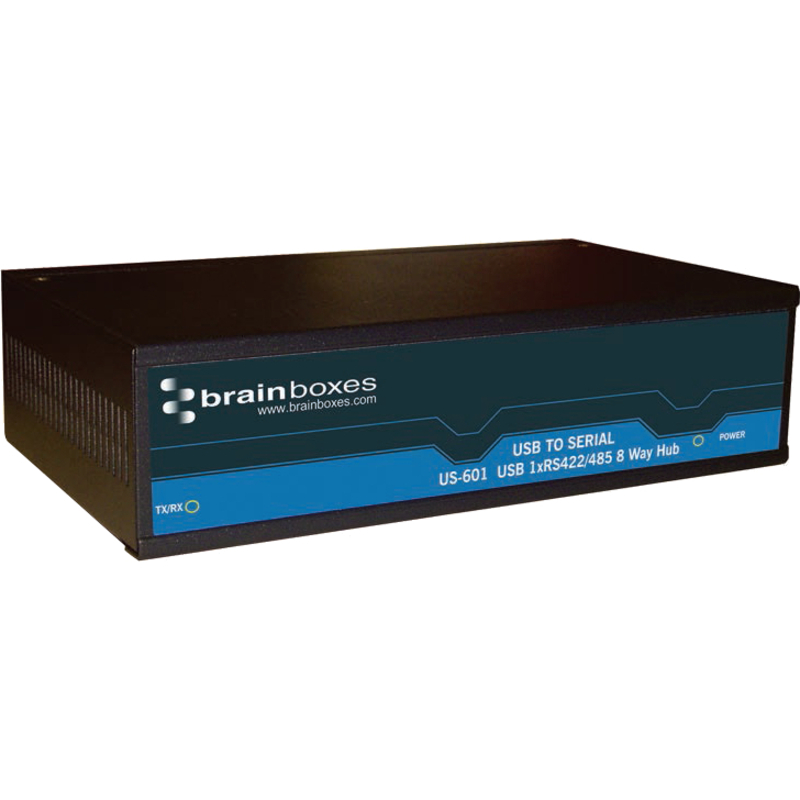

USB to Serial multi drop hub providing 1 RS422/485 serial port multiplexed 8 times for multibus applications. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8 with additional drivers for both Mac OS X and Linux.
- OptionaDIN raimounting kits
- Lifetime Warranty and Lifetime Support
- Drivers for alpopular operating systems
- Supplied with USB cable
- Supplied with rubber feet for office environment
- 8xDB9 Connector 9 Pin Male USB Type B High Retention connector (9 Pin Male)
- Rugged metaenclosure (IP30 rated)
- 128 Byte Tx and 256 Byte Rx FIFOs
- Up to 921,600 Baud
- 1 Multi Drop to 8 port RS422/485
| Brand | |
|---|---|
| Brand | Brainboxes Limited |
| Size / Dimensions | |
|---|---|
| Form Factor | External |
| General Features | |
|---|---|
| Manufacturer | Brainboxes Limited |
| Misc Ports | |
|---|---|
| Number of Serial Ports (Exter | 8 |
| Host Interface | USB Type B |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
