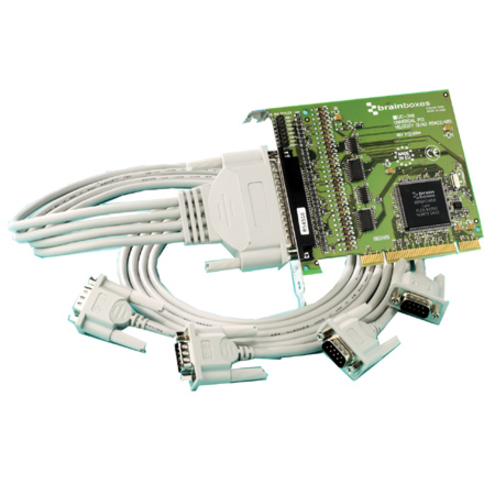

Universal PCI providing four RS422/485 serial ports with transient spike protection. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8.
- Lifetime Warranty (registration required)
- Lifetime Support
- Sample Programs, Test & Terminal software
- Drivers for all popular operating systems
- Up to 921,600 Baud
- DB9 connector (9 Pin Male)
- PCI 3.0
- 128 Byte Tx and 128 Byte Rx FIFOs
- 4 port RS422/485
| Brand | |
|---|---|
| Brand | Brainboxes Limited |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Thickness | 787.4 mil |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 7.20 Mbit/s |
| Manufacturer | Brainboxes Limited |
| Misc Ports | |
|---|---|
| Ports Expandability | Via Cable , 4 x DB-9 RS-422/485 - Serial |
| Host Interface | Universal PCI |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
