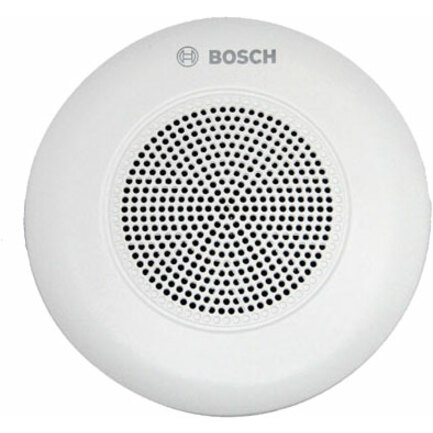

The LC5-WC06E4 is an extreme compact ceiling loudspeaker, suitable for speech and background music reproduction. The design of the front grille perfectly matches with current available recessed luminaires, integrating light and sound. The optional back-box LC5-CBB fully protects the rear of the loudspeaker from dust and dripping water from above, making the combination IP 44 protected. The loudspeaker frame, grille and back-box are manufactured from self-extinguishing ABS according to UL 94 V 0.
This ceiling loudspeaker is suitable for use in low ceiling applications with low noise level. The small driver used in the unit stands for delivering good sound quality from a small sized unit and provides a wide opening angle for the important frequency octaves. Fewer loudspeakers are needed to cover a given area, and the noticeable "fading" that occur as a listener walks from one loudspeaker to another area is eliminated.
The loudspeaker (with assembled back-box) is suitable for use in humidity-, chlorine- and salty environments.
- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Hear every detail crisp and clear with a frequency response of 85 Hz-20 kHz
- Handles up to 6 W of RMS power
- Offers great productivity with 20 kHz maximum frequency response
- 90 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
- IP44 Ingress Protection (IP) rating for efficient imperviousness of intrusion from dust and water
- Ceiling Mountable form factor for your convenience and simplicity of usage
- Water Proof durability for better reliance and usability
- 3.07" depth to ensure dependable sound output efficiency
| Brand | |
|---|---|
| Brand | The Bosch Group |
| Audio | |
|---|---|
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 85 Hz |
| Impedance | 8 Ohm |
| RMS Output Power | 6 W |
| Sensitivity | 90 dB |
| PMPO Output Power | 9 W |
| Size / Dimensions | |
|---|---|
| Form Factor | Ceiling Mountable |
| Diameter | 3.5" |
| Cutout Diameter | 2.99" |
| General Features | |
|---|---|
| Durability | Dust Proof |
| Manufacturer | The Bosch Group |
| Compliance & Certification | |
|---|---|
| Ingress Protection (IP) Rating | IP44 |
