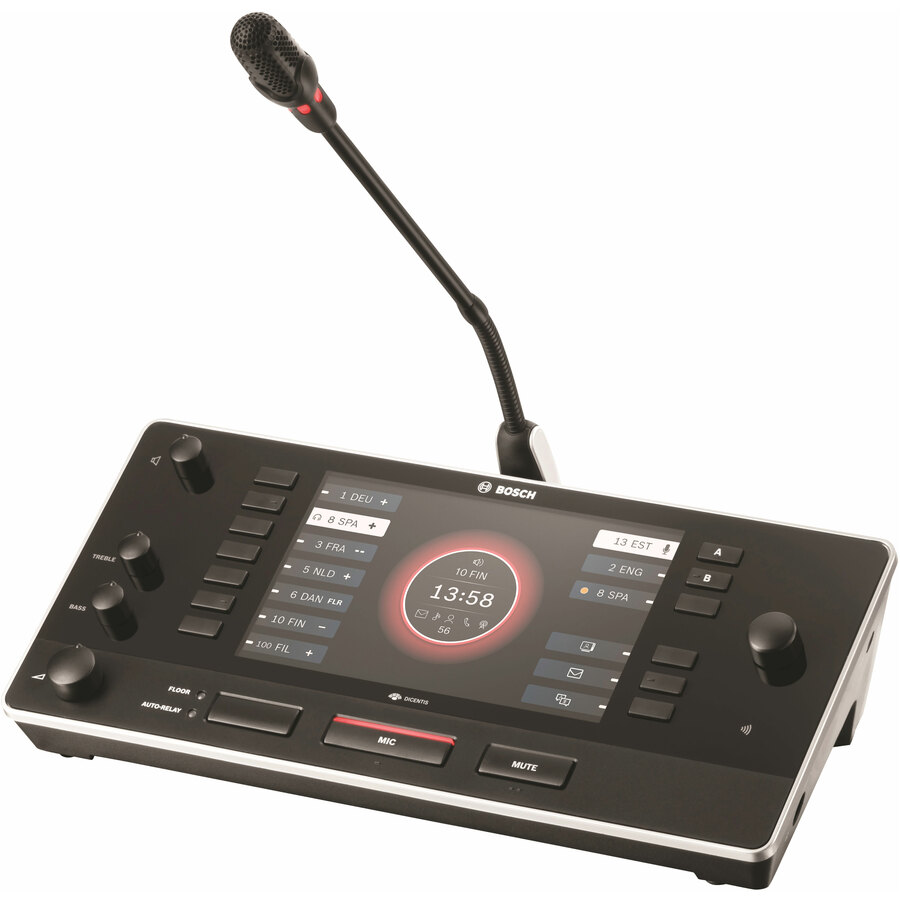

The DCNM-IDESKVID is an interpreter desk with a simplified, intuitive and ergonomic design and an HDMI video output to connect a 3rd party video screen. Clear positioning of the controls allows operation without mistakes. The interpreter desk provides only relevant information, a single glance is sufficient for the entire interpreting process. It fully complies with ISO 20109.
Functions
- Up to ten desks per booth
- Hot plug and play
- Automatic external headset microphone selection
- Hearing protection for predefined headphones and headsets
- Tactile feedback for all controls
- Audible feedback and pimples for visually impaired users
- High contrast 7 inch display
- Language and system configuration from the interpreter desk's configuration menu
Controls and indicators
- Headphone rotary volume control
- Headphone rotary bass and treble tone controls
- Loudspeaker rotary volume control
- Floor / auto-relay selection button and LED indicators
- Microphone button with red on-air and green "booth not in use" LED indicators
- Mute button
- Red on-air LED at the rear
Display section
- 7 relay language preset buttons, with indicators for selected preset and language: number, abbreviation and quality
- A, B (and C) language output buttons, with indicators for output: selection and state; language: number, abbreviation, engaged
- By default, the buttons at the right bottom side of the display section support the functionality
- Clock control (real-time and speech time)
- Video source selection, to select either the participant speaking or the participant's presentation to be shown on the external video screen
- Language overview, to show the quality of all available languages
- With an Ultimate license, these buttons can be configured for the functionality
- Language overview
- Clock control (real-time and speech time)
- Video source selection
- Speak slow notification
- Headphone selection
- Rotary control with integrated push button to change settings
- Loudspeaker selected language indicator
- Audible feedback active indicator (beeps)
- Microphone or external headset selection indicator
| Brand | |
|---|---|
| Brand | The Bosch Group |
| Power & Battery | |
|---|---|
| Input Voltage | 48 V DC |
| Size / Dimensions | |
|---|---|
| Form Factor | Tabletop |
| General Features | |
|---|---|
| Manufacturer | The Bosch Group |
