DICENTIS incorporates several standardized technologies that have been combined to create an open platform. Complete system solutions can be created by simply integrating compatible products. This makes DICENTIS extremely scalable, enabling it to evolve with the growing needs of meeting and conference facilities. At its heart, the DICENTIS Conference System makes use of the unique IP based OMNEO media networking architecture, developed by Bosch.

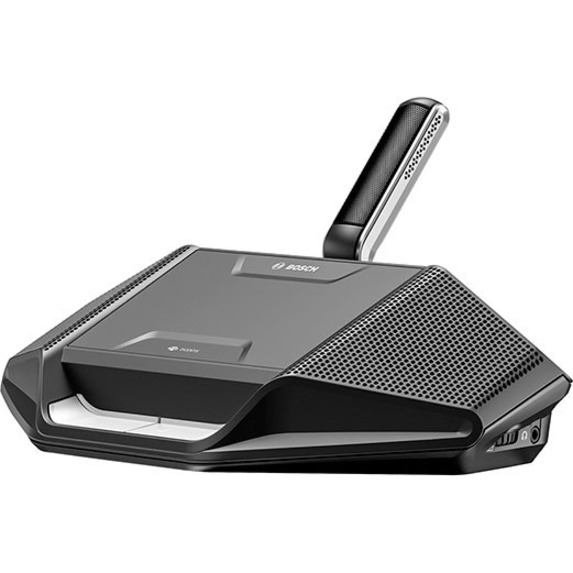

The elegantly designed DICENTIS Discussion devices enable participants to speak, register a request to speak, and listen to discussion. The DICENTIS Discussion device can be easily configured as a single-use or chairperson device via the PC configuration software application. To provide a cost-efficient and flexible solution, a software license can be activated to enable dual-use.
Functions:
General
- Single-use, dual-use and chairperson can be configured via the PC configuration software application.
- Audio mute button.
- Supports star and loop-through connection.
Speech intelligibility
- Crystal-clear sound due to a very high signal-to-noise ratio.
- Maximum speech intelligibility is guaranteed.
- The loudspeaker and microphone can be active at the same time to facilitate a face-to-face meeting experience. A feedback suppressor is built in to prevent acoustic feedback.
Security
- Encryption ensures that information within the system remains confidential.
Microphones
- A socket is provided to connect the pluggable microphones DCNM-HDMIC, DCNM-MICS or DCNM-MICL (to be ordered separately).
Headphones and loudspeakers
The device has a headphone connection and independent volume control (on both sides of the device), so the speaker can be heard clearly even when there is excessive background noise.
Controls and Indicators
Top side of device:
Microphone with a red or green indicator:
- Red indicates that the microphone is active.
- Green indicates that a request-to-speak is accepted.
LED indicators on device showing:
- Microphone on state - Red.
- Possible-to-speak - White.
- Priority - White (Chairperson only).
- Request-to-speak - Green.
Left and right-hand side of the device:
- Rotary controls for independent headphone volume control.
Interconnections
- Socket for pluggable microphone.
- Two 3.5 mm (0.14 in) headphone sockets stereo jack type.
- 2x RJ45 compatible connection for system communication and power.
- Hot Plug-and-play.
| Brand | |
|---|---|
| Brand | The Bosch Group |
| Power & Battery | |
|---|---|
| Input Voltage | 48 V DC |
| Size / Dimensions | |
|---|---|
| Form Factor | Tabletop |
| General Features | |
|---|---|
| Manufacturer | The Bosch Group |
