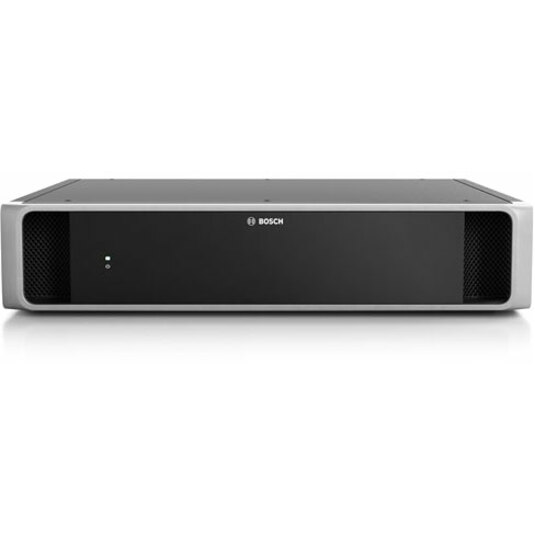

The Audio processor and powering switch is responsible for routing, controlling and processing the audio. The DCNM-APS2 also supplies power to the discussion and multimedia devices. The device includes an intelligent adaptive acoustic feedback suppressor, echo cancellation and two 5-band parametric equalizers for optimal speech intelligibility. It has two audio inputs for inserting external analogue audio signals into the system and mix-minus is provided for connecting the DICENTIS Conference System to video conferencing equipment. The DCNM-APS2 also has two audio outputs used for mix-minus and to connect an external sound reinforcement system.
The built-in Ethernet switch connects all devices in the system together in a network and supports loop-through connection. This makes it possible to connect a DICENTIS discussion device to another DICENTIS discussion device. Even the last DICENTIS discussion device in the loop can be connected to a DCNM-APS2 to create cable redundancy. The DCNM-APS2 has no user controls and can be fully controlled remotely.
Controls and indicators
- Mains switch on the rear to power on the Audio processor and powering switch
- Ground-lift switch
- LED on the front shows: power on (green), standby (amber), and no connection to the system (blinking)
- LED on the rear shows: power availability on each powered socket (green), and overload per powered socket (red)
- Ethernet LED's yellow and amber for each socket
- Independent powered sockets: a short circuit on one socket does no influence the other sockets
- Supports hot plug and play
Interconnections
- 2 three-pole XLR balanced audio line inputs with galvanic separation
- 4 RCA unbalanced audio line inputs
- 2 three-pole XLR balanced audio line outputs with galvanic separation
- 4 RCA unbalanced audio line outputs
- Mains power supply auto ranging input
- 1 socket with Ethernet without power, compatible with RJ45
- 3 sockets with Ethernet with high power supply (144 W), compatible with RJ45
- 1 socket with Ethernet with low power supply (15 W), compatible with RJ45
| Brand | |
|---|---|
| Brand | The Bosch Group |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Size / Dimensions | |
|---|---|
| Form Factor | Tabletop |
| General Features | |
|---|---|
| Manufacturer | The Bosch Group |
