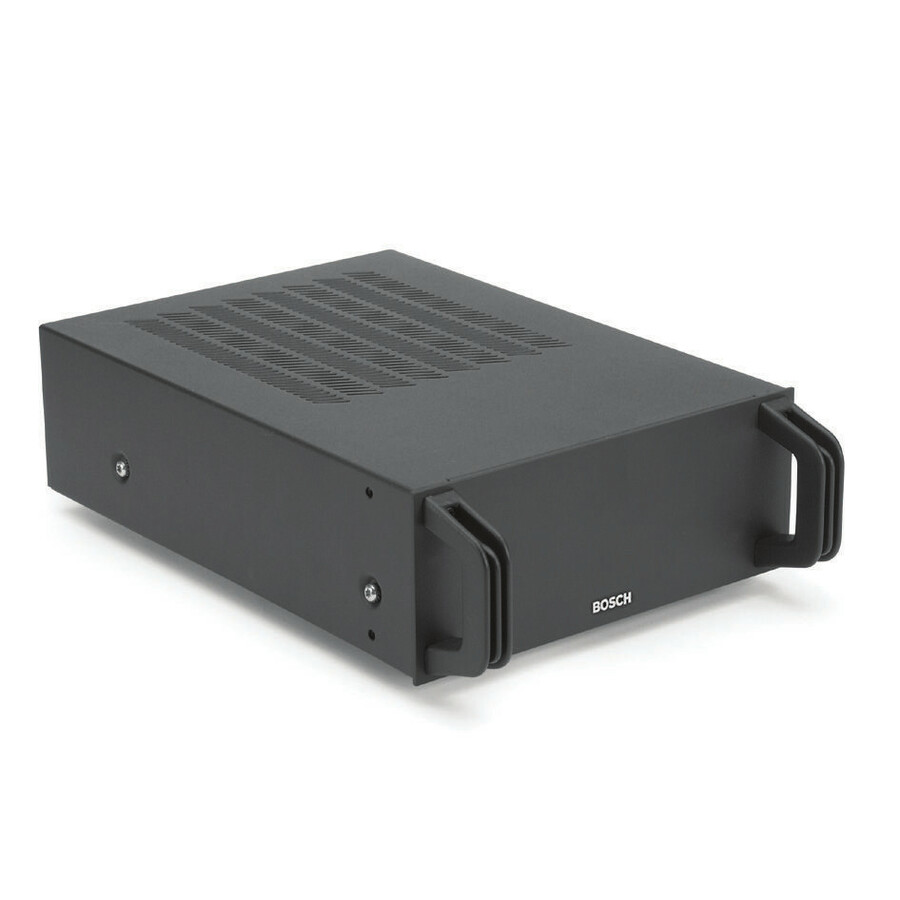

The Extension Power Supply unit is used in combination with a CCU to supply extra power to the DCN network.
Functions
Controls and Indicators
- "Power on" LED indicator
- Three indicators to indicate DCN outlet overload (red LEDs)
Interconnections
- Euro-mains socket with built-in fuse holder, mains cable 1.7 m (66.9 in) included
- 2 m (78.7 in) DCN cable with molded six-pole circular connector
- Six-pole circular socket for loop-through connection to the DCN network
- Three DCN outlet sockets for connection of units, plus extension power supplies. Each socket is protected against short-circuit (3 x six-pole circular sockets)
- u Loop-through cabling
- u Switches on automatically when the CCU is switched on
- u Built-in DCN network splitter allows installation at any convenient point in the system cabling
- u Maximum supply power of 255 W
- Easy to connect to DCN
| Brand | |
|---|---|
| Brand | The Bosch Group |
| Power & Battery | |
|---|---|
| Output Voltage | 40 V DC |
| Output Power | 350 W |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack Mount |
| General Features | |
|---|---|
| Manufacturer | The Bosch Group |
