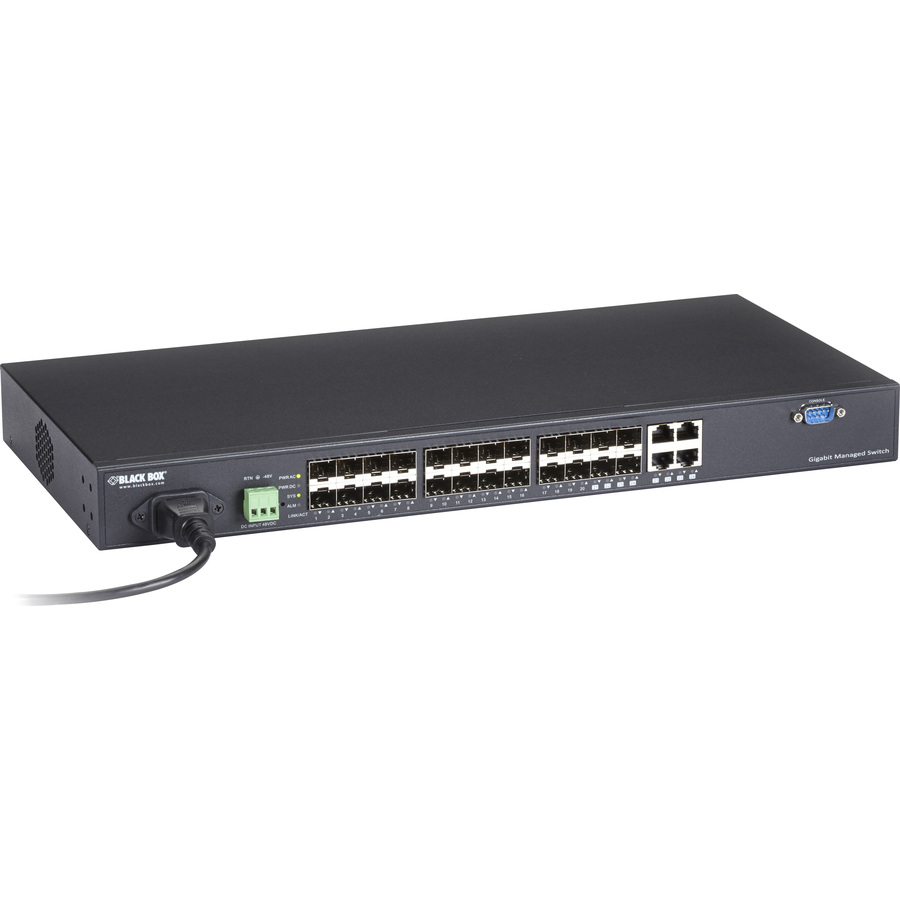

This advanced, fully-manageable Layer Dual switch gives you networking versatility. It features 24 high-speed fiber ports: (20) 100-/1000-Mbps SFP fiber ports and (4) dual-media 100-/1000-Mbps SFP/twisted-pair ports.
This all fiber switch gives you the flexibility to select a variety of ranges with SFP transceivers.
Advanced functions in an economical package.
This switch offers advanced switching and security features normally found in more expensive switches. You'll get extensive management capabilities, greater bandwidth control, and QoS for switching in VoIP and other real-time, high-performance applications.
Pack up the trunk.
To provide more bandwidth to a specific application or segment, combine ports using the switch's 802.3ad Link Aggregate Control Protocol (LACP) capabilities. With this bandwidth aggregation feature, the combined ports create a multilink trunk for load sharing. The switch supports 12 groups with 8 ports per group.
High-level service.
The switch offers extensive Quality of Service support including prioritization, classification, scheduling, rate limitations, and more. The switch also supports eight hardware queues.
Safe and secure.
Your network is safe with this switch. It also offers MAC address filtering and VLAN capabilities so you can segregate networks.
Multiple management options.
Monitor, configure, and control the switch via its RS-232 serial port, or through Ethernet using CLI or Web-based management.
SFPs
For the SFP slots, order SFP modules, such as the 850-nm Multimode Gigabit SFP Module (LFP411) and 1310-nm Single-mode Gigabit SFP Module (LFP412). For information on SFP module compatibility, contact our FREE Tech Support.
- OAM and CFM for easy set-up and management
- Manage via the Web or Command Line"
- Robust security with VLAN capabilities
- Programmable QoS classification and prioritization
- Superior manageability, security, QoS, and performance
- Bundle multiple ports for higher bandwidth with Link Aggregate Control Protocol aggregation
- Add SFPs when required to expand the network
- Provides twenty 100/1000-Mbps SFP fiber ports and four dual-media 100/1000-Mbps RJ45/SFP ports
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Power Consumption | 38.64 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 4 |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Frequency | 60 Hz |
| Manufacturer | Black Box Corporation |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 20.0 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 20 |
| Shared SFP Slot | Yes |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 4 x Gigabit Ethernet TP/SFP Combo |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
