Perfect for government operations, defense applications, secure control rooms in airports and other transportation hubs, medical facilities, banks, factories, and more, the Touchscreen Controller, KVM enables control of a Secure KVM Switch from just one USB cable. The Controller is compatible with any new switch from the existing Black Box Secure KVM and KM product offering. Control your switch from a keyboard/mouse located up to 30ft (9m) away while protecting your valuable data with this secure solution.
Visualize Your Connection

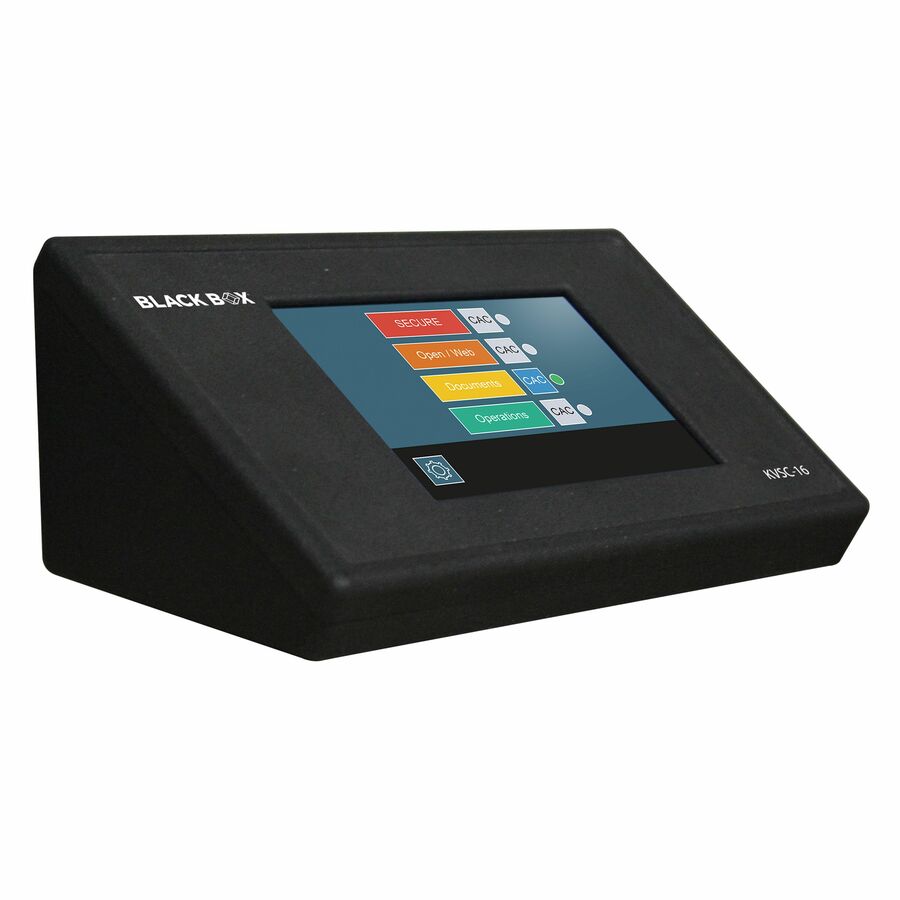

The Touchscreen Controller clearly shows the active computer selection and features a color LCD Touchscreen display with a backlight for clear and efficient switching. Instantly synchronize the controller to the switch via the switch's front-panel indicators.
Automatic Port Detection
Connect to any secure switch, up to 16 channels. The controller automatically detects the number of ports.
Easy Channel Switching
Easily switch between channels and activate CAC up to 30ft (9m) away from the switch.
Supports Keyboard/Mouse Extension
Control the connected PCs up to 30ft (9m) away from the keyboard/mouse.
Create a Futureproof, Hybrid Installation
The Touchscreen Controller can easily be integrated in the future to work seamlessly between Secure and Non-Secure KVM Switches. Instantly synchronize the controller to the switch via the switch's front-panel indicators. Leverage RS-232 to customize settings for future control of other devices.
- Control a secure KVM switch from just one USB cable
- Automatically detects up to 16 ports
- Color LCD Touchscreen display with backlight ensures a crystal-clear view of your connections
- Link via an inexpensive USB cable
- Supports switching of CAC up to up to 30ft (9m) away from the switch
- Futureproof: This single-USB cable solution supports your system now, and later when it grows
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Input Current | 3 A |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 4 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 320 � 480 |
| General Features | |
|---|---|
| Maximum Operating Distance | 30 ft |
| Manufacturer | Black Box Corporation |
| Device Type | Secure KVM |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
