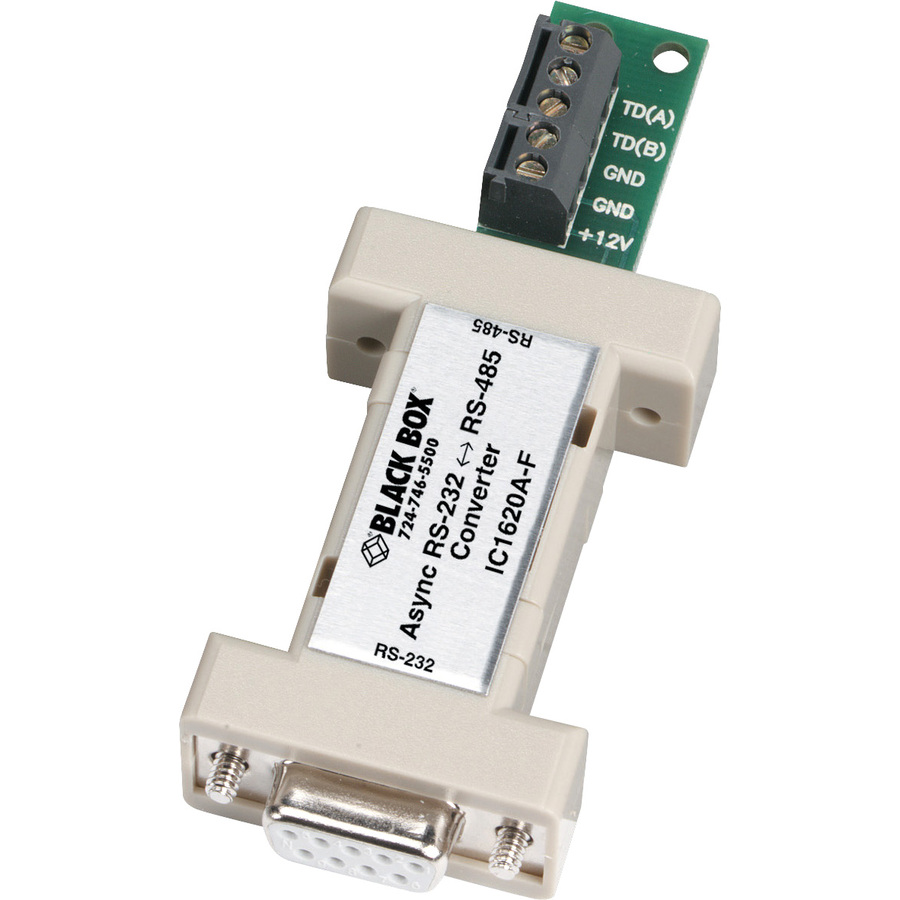

The Async RS-232 to RS-485 Interface Bidirectional Converter, DB9 Female to Terminal Block features a DB9 female connector on the RS-232 side, and a terminal block on the RS-485 side. It converts your unbalanced RS-232 signals to balanced half-duplex RS-485 signals.
- The RS485 driver is automatically enabled during each spacing state on the RS232 side.
- Async (data leads) only.
- Up to 32 RS485 devices can be attached to create a large multi-drop network.
- 2-wire operation half-duplex only.
- Operates in point to point or multipoint applications.
- Transmit data up to 115 kbps or at distancesup to 4000 ft.
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Size / Dimensions | |
|---|---|
| Form Factor | Internal |
| General Features | |
|---|---|
| Maximum Distance Supported | 1.22 km |
| Manufacturer | Black Box Corporation |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
Black Box RS-232 to RS-485 Interface Converter - 1 x DB-9 RS-232 , 1 x RS-485 Terminal Block - Internal
