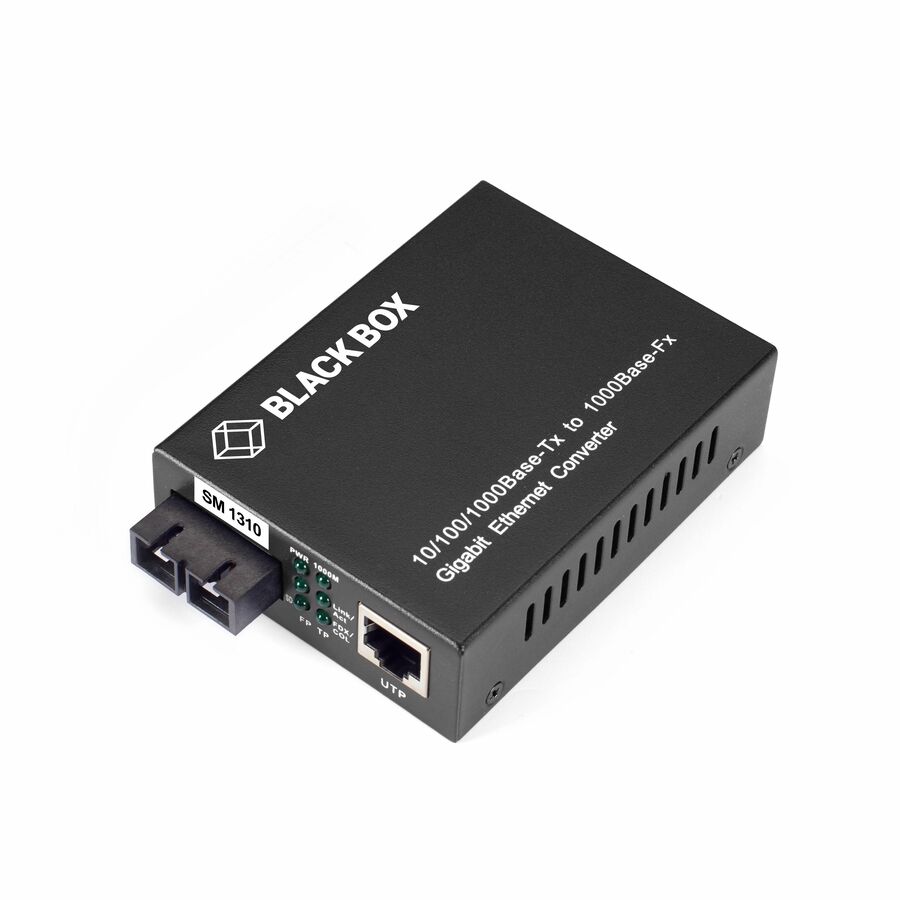

Black Box Pure Networking Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-LX - 10 km - Power Adapter - Standalone, Rack-mountable

$ 114.99 $ 114.99
$ 114.99

$ 114.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Additional Warranty Informati
  • Width
  • Fiber Optic Cable Core/Claddi
  • Network Technology
  • Network (RJ-45)
  • Number of Network (RJ-45) Ports
  • Fiber Mode Supported
  • Fiber Optic Cable Core/Cladding Specification
  • Plug/Connector Type
  • Total Number of Ports
  • Fiber Optic Cable Wavelength
  • Number of SC Ports
  • Form Factor
  • Ethernet Technology
  • Media Type Supported
  • Frequency
  • Maximum Distance Supported
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Packaged Quantity
  • Package Contents
  • Limited Warranty
  • Additional Warranty Information
  • Manufacturer
  • Product Type
  • Product Line
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

10/100/1000BASE-TX to 1000BASE-LX

Meet the connectivity needs of your deployment. This media converter converts 10/100/1000BASE-TX to 1000BASE-LX. Includes broadcast storm control, flow control, and CRC error checking.

Auto-negotiation

Completely compatible with IEEE802.3/802.3u auto-negotiation function.

Complies with Standards

? The media converter meets EN60950, UL62368, and EN62368 standards.

  • Compliant to EN60950, UL62368, and EN62368
  • Converts 10/100/1000BASE-TX to 1000BASE-LX at fiber port speed
  • Use as a standalone unit or with available chassis (LHGC-RACK)
  • Supports frame size of 9000 bytes
Brand
Brand Black Box Corporation
Power & Battery
Plug/Connector Type Barrel
Power Source Power Adapter
Networking & Connectivity
Network Technology 1000Base-LX
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
Size / Dimensions
Form Factor Rack-mountable
General Features
Frequency 60 Hz
Maximum Distance Supported 10 km
Manufacturer Black Box Corporation
Misc Ports
Total Number of Ports 2
Number of SC Ports 1
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Cables
Fiber Optic Cable Core/Cladding Specification 8.3/125 µm , 9/125 µm , 10/125 µm
Fiber Optic Cable Core/Claddi 10/125 µm
Fiber Mode Supported Single-mode
Fiber Optic Cable Wavelength 1310 nm
Compliance & Certification
Environmentally Friendly Yes
Miscellaneous
Product Name Pure Networking Transceiver/Media Converter
Black Box Pure Networking Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-LX - 10 km - Power Adapter - Standalone, Rack-mountable
