Extend copper via fiber

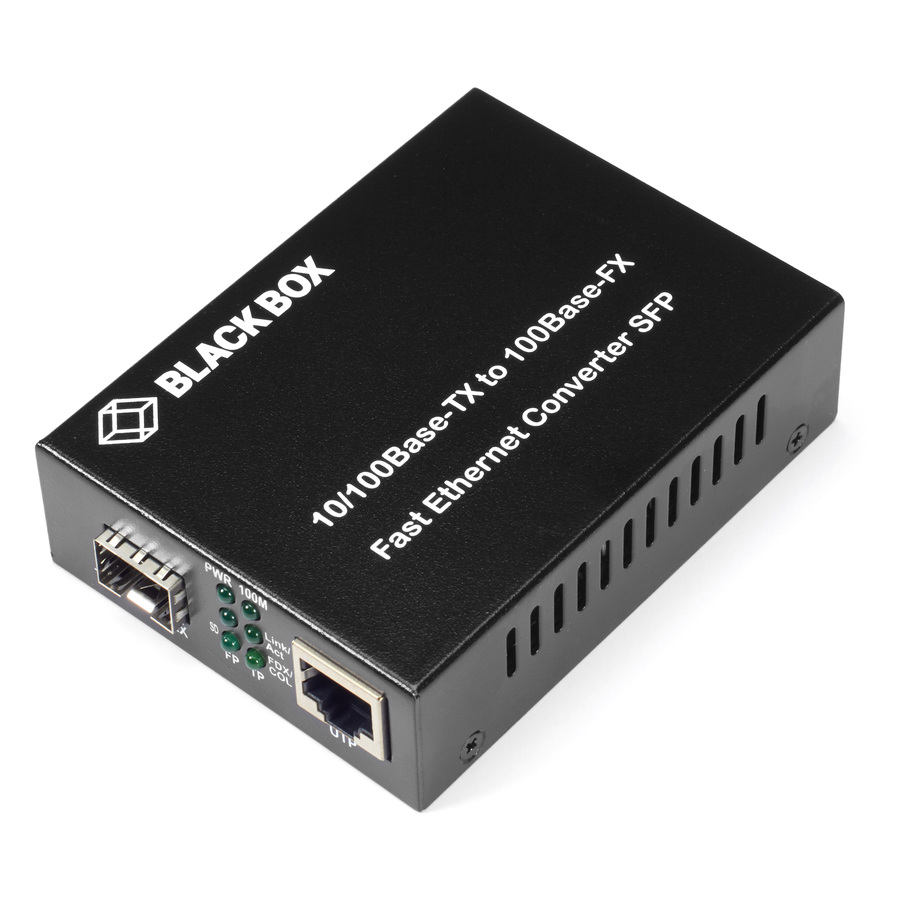

Get your copper-based network where it needs to go. This media converter lets you extend your copper-based network via fiber to a maximum distance of 60 km through the use of an SFP, providing your deployment with the connectivity it needs.
Support multiple standards
Meets whatever standard you need it to. It's fully compliant with IEEE802.3, IEEE802.3U, 10/100BASE-TX and 100BASE-FX.
Straightforward installation
The media converter can be installed into a standard converter chassis. The installation is quick and easy.
Status updates
Know how your media converter is performing. Operation status can be locally monitored through a set of diagnostic LEDs located on the front panel.
Know link media issues immediately
Features helpful Link Fault Pass-Through (LFP) functionality. LFP immediately alarms administrators to the problem with the link media and provides an efficient solution to monitor the net.
- Link fault pass-through functionality
- One RJ45 port and one SFP slot
- Flow Control: IEEE802.3x flow control for full duplex mode.
- Know operation status through LEDs on front panel
- Use as a standalone unit or with the available chassis (LHGC-RACK).
- Fully compliant with IEEE802.3, IEEE802.3U, 10/100BASE-TX, 100BASE-FX
- Convert copper-based network via fiber up to a maximum distance of 60 km through the use of SFP's
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Power & Battery | |
|---|---|
| Plug/Connector Type | Barrel |
| Power Source | AC Adapter |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-FX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Frequency | 60 Hz |
| Maximum Distance Supported | 60 km |
| Manufacturer | Black Box Corporation |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 10/125 µm |
| Fiber Mode Supported | Multi-mode |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
