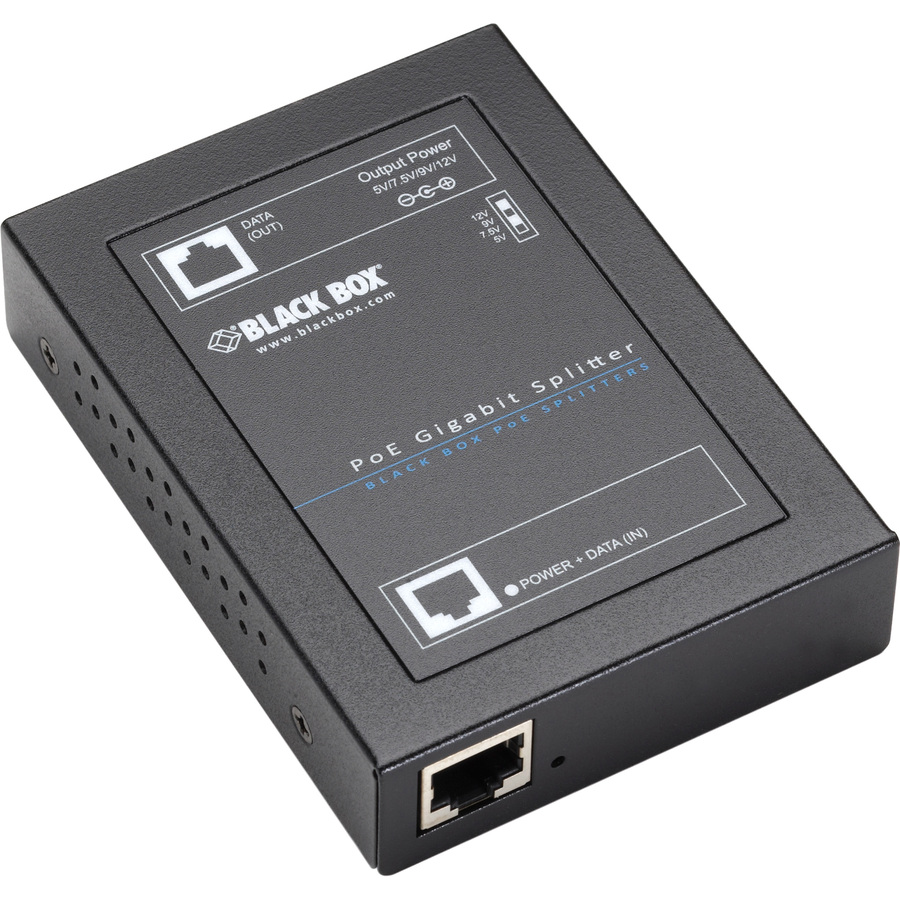

The Gigabit PoE+ Splitter enables you to send Gigabit Ethernet plus PoE+ power to a non-PoE device by splitting the PoE power out to an 18" DC power cord with with a right angle 5.5 x 2.5-mm power plug (included) to power the device.
The splitter saves on installation and equipment costs by enabling you to install non-PoE devices in areas without a nearby power outlet and to bring legacy devices into a PoE network.
PoE+ Splitter gigabit. One port 10/100/1000Mbps RJ45 PoE+ PD input plus one port 10/100/1000Mbps RJ45 output and DC output jack, 5-12VDC. Typical applications include powering remote IP security cameras or access points. Splits a PoE or PoE+ signal into separate power and data sources. DIP switch selects output voltage. Delivers up to 1.7A putput at 12VDC with PoE+ input.
- Features auto sensing, auto negotiating 10-/100-/1000-Mbps ports.
- Auto-MDI/MDI-X on both Ethernet ports.
- Supports Gigabit Ethernet as well as 802.3af PoE and 802.3at PoE+.
- Provides up to 12-VDC 1.7-amp power to a non-PoE device.
- Splits a PoE or PoE+ signal into separate power and data sources.
- Enables you to use PoE or PoE+ to power non-PoE devices.
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| General Features | |
|---|---|
| Manufacturer | Black Box Corporation |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
