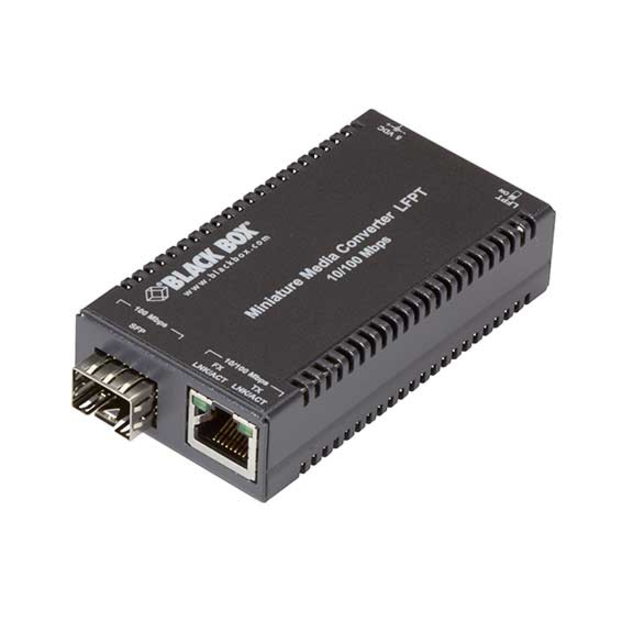

Black Box MultiPower Miniature Transceiver/Media Converter

$ 242.49 $ 242.49
$ 242.49

$ 242.49 / Units
  • Brand
  • Depth
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Network (RJ-45)
  • Number of Network (RJ-45) Ports
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Number of SFP Slots
  • Total Number of Ports
  • Ethernet Technology
  • Media Type Supported
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
User-Manual PDF
  • Autonegotiates for speed and duplex.
  • A DIP switch enables Link Fault Pass-Through to be turned on and off for better troubleshooting.
  • Powered by the included universal AC power supply, a PC's USB port (with optional USB Power Adapter Cable), or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

This Black Box MultiPower Miniature Media Converter makes it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to an SFP installed in the converter's opposite side. The SFP slot enables you to adapt the converter to any 100-Mbps fiber interface. Best of all, you can tuck this tiny converter unobtrusively behind your PC. The converter not only links 10- and 100-Mbps segments to fiber cabling, it also works as a data rate converter, performing 10/100 autonegotiation on the twisted-pair port. For extra versatility, you can power the Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (LHC021A), or through the optional rackmount PowerTray (LHC018A-AC-R2).

  • Compliant to EN62368
  • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
  • Compact size; measures just 0.8"H x 1.8"W x 3.4"D.
  • Powered by a universal AC power supply or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
  • Converters may also be powered from a USB port using the LHC021A USB power cable.
Brand
Brand Black Box Corporation
Power & Battery
Power Source AC Adapter
Networking & Connectivity
Network Technology 100Base-X
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
General Features
Manufacturer Black Box Corporation
Expansion Slots
Total Number of Expansion Slots 1
Expansion Slot Type SFP
Number of SFP Slots 1
Misc Ports
Total Number of Ports 1
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Compliance & Certification
Environmentally Friendly Yes
Black Box MultiPower Miniature Transceiver/Media Converter - 1 x Network (RJ-45) - Fast Ethernet - 10/100Base-T, 100Base-X - 1 x Expansion Slots - SFP - 1 x SFP Slots - AC Adapter
